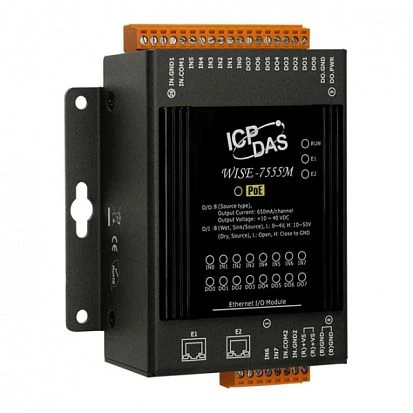

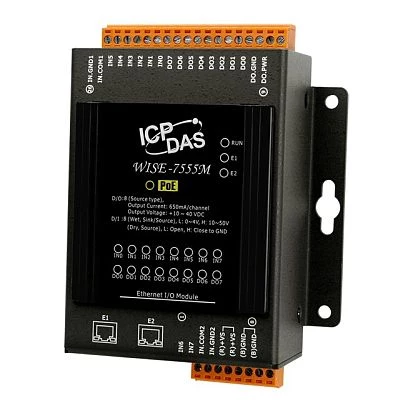

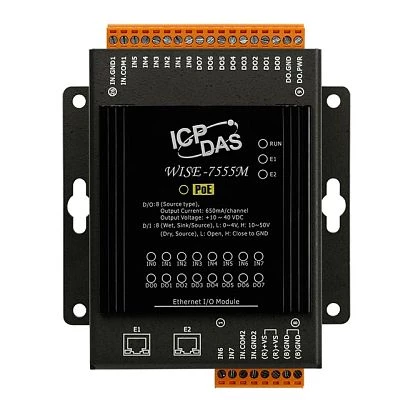

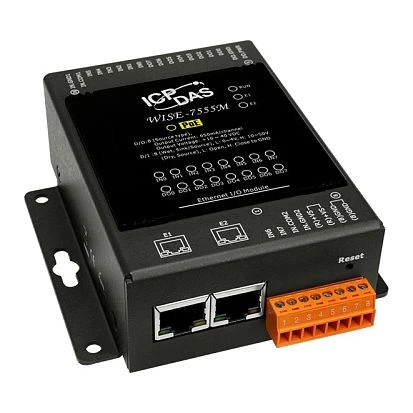

WISE-7555M
ICP DAS
SKU: 07358300
WISE I/O Module with 8-channel Digital Input, 8-channel Digital Output and 2-port Ethernet Switch, PoE
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2500 V
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Max. load current
650 mA
Output voltage
10~40 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2500 V
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Max. load current
650 mA
Output voltage
10~40 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2500 V
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Max. load current
650 mA
Output voltage
10~40 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2500 V
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Max. load current
650 mA
Output voltage
10~40 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
Documentation
Software
Documentation
Software
Documentation
Software
Documentation
Software
Get a Quote
