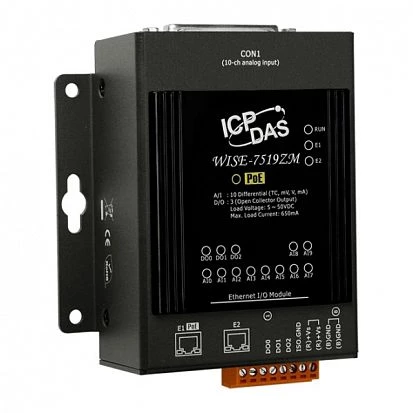

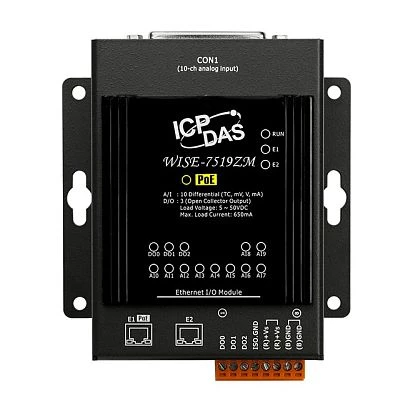

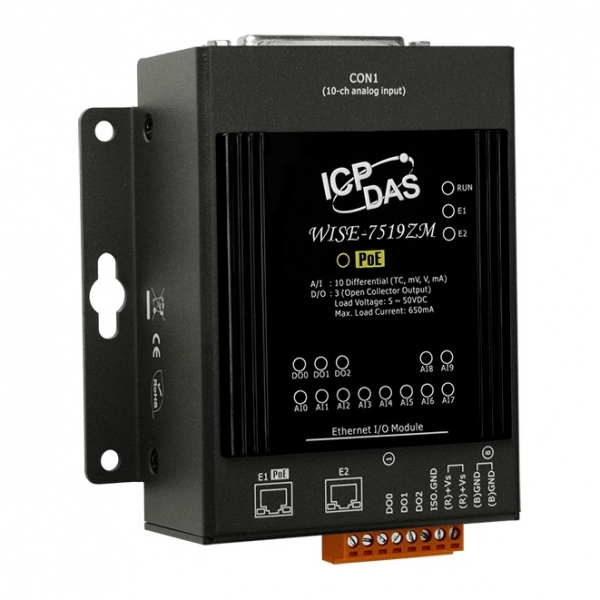

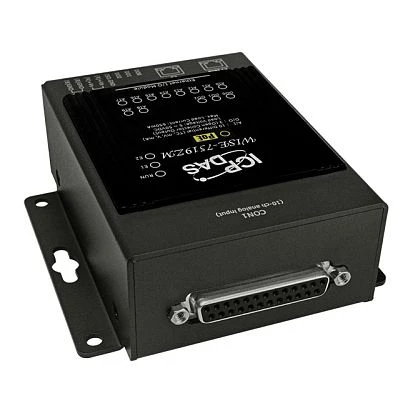

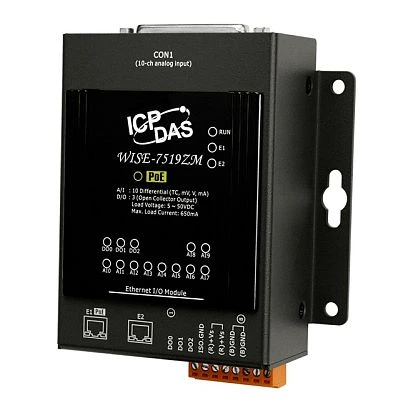

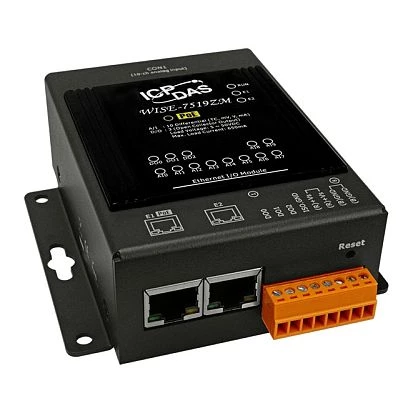

WISE-7519ZM/S
ICP DAS
SKU: 07533400
WISE I/O Module with 10-channel Universal Analog Input, 3-channel Digital Output and 2-port Ethernet Switch, PoE, with DB-1820 Daughter Board
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Software
Programming Method
IF-THEN-ELSE Logic Rules
Analog Input
Total channels of analog input
10
Differential channels
10
Number of Bits
16 Bit
Sampling rate
10 Hz
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Max. load current
650 mA
Output voltage
5~50 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
