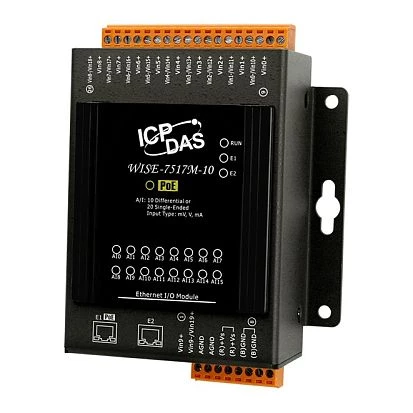

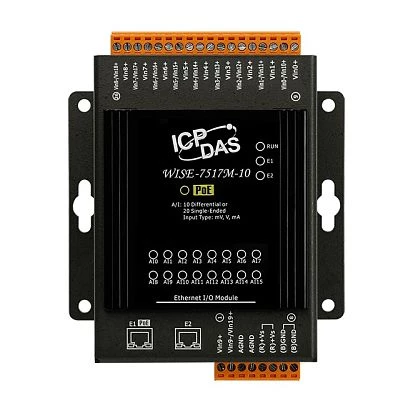

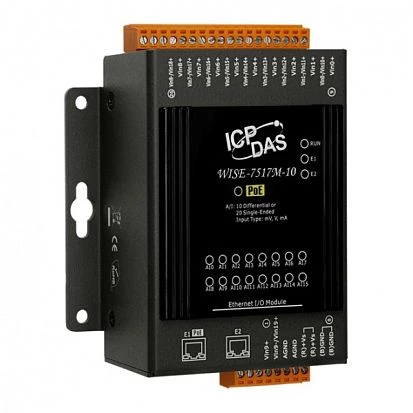

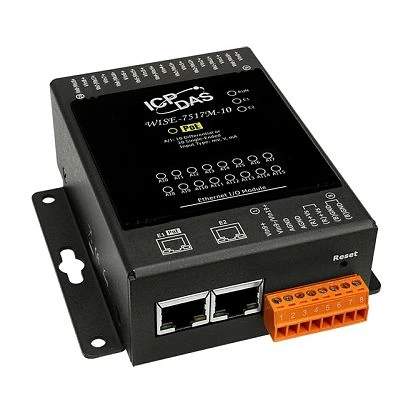

WISE-7517M-10
ICP DAS
SKU: 07358400
WISE I/O Module with 10/20-channel Analog Input and 2-port Ethernet Switch, PoE
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Software
Programming Method
IF-THEN-ELSE Logic Rules
Analog Input
Total channels of analog input
20
Single-Ended channels
20
Differential channels
10
Number of Bits
16 Bit
Sampling rate
10 Hz
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
