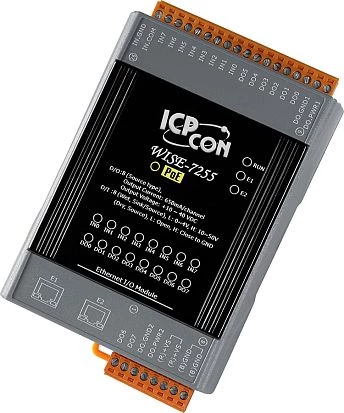

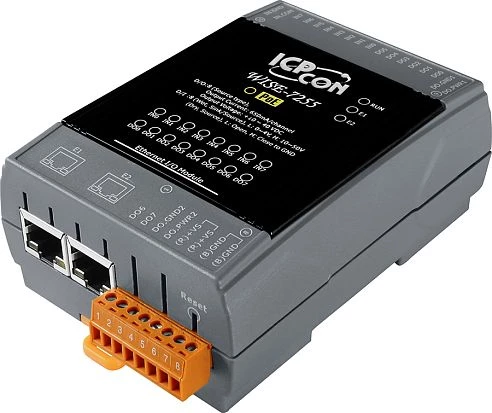

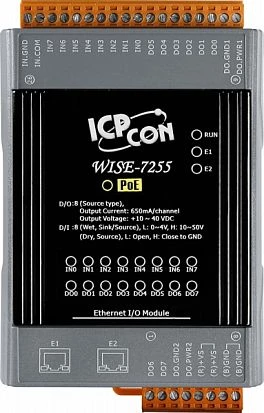

WISE-7255

WISE-7255

ICP DAS
SKU: 07833900
8-channel Isolated Source Type Open Collector Output and 8-channel Digital Input PoE Module
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
16-bit
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Max. load current
650 mA
Output voltage
10~40 V
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
