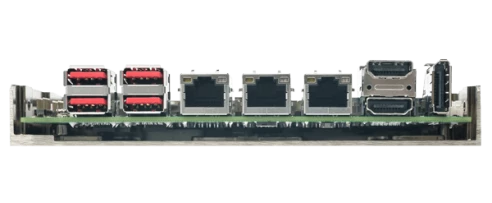

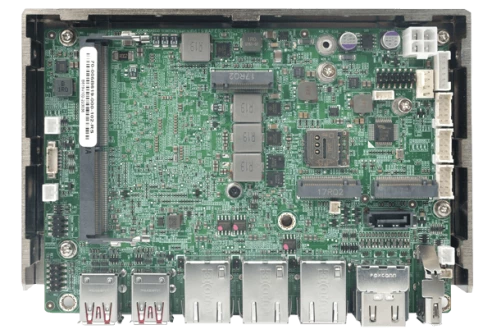

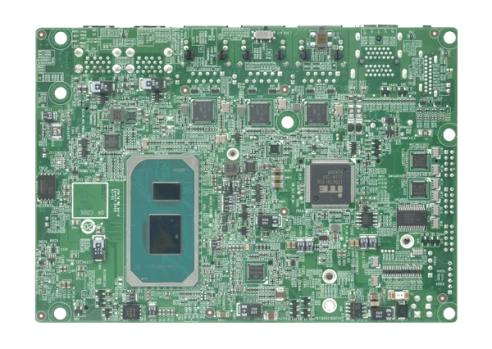

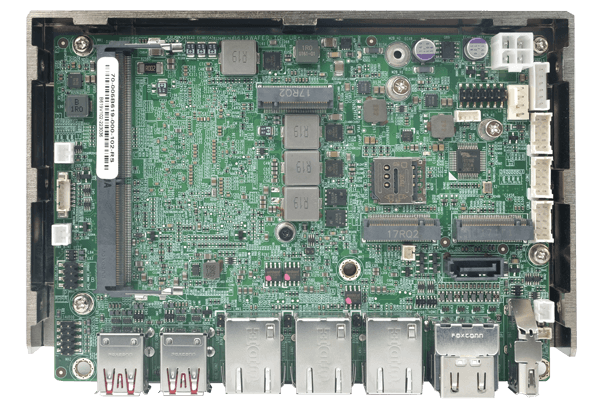

WAFER-TGL-U-CE

WAFER-TGL-U-CE

IEI
SKU: 10591400
3.5" Embedded Intel Celeron 6305E, DDR4, 2xHDMI, DP, 3x2.5GbE LAN, 3xCOM, 4xUSB 3.2, 2xUSB 2.0, M.2 A-key, M.2 B-key, SATA 6Gb/s, I2C, DIO, Ausio, 12VDC-in
Price on request
Available
Available

CPU
СPU Generation/Family
Tiger Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
3
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
Extension Slots
Total
3
SIM Card slots
1
M.2
2
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
