WAFER-RK3568

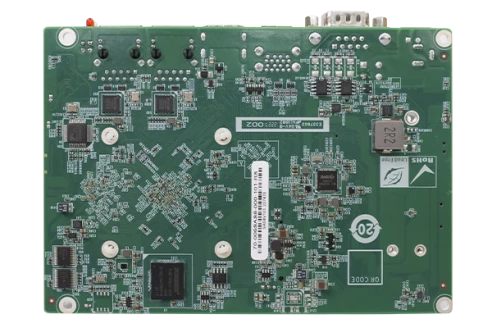

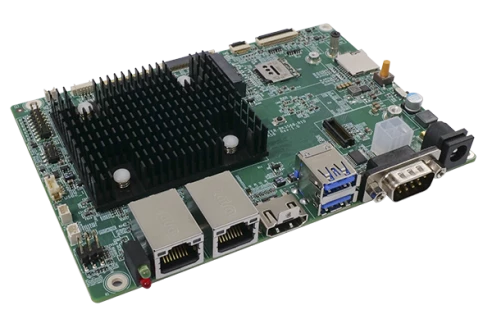

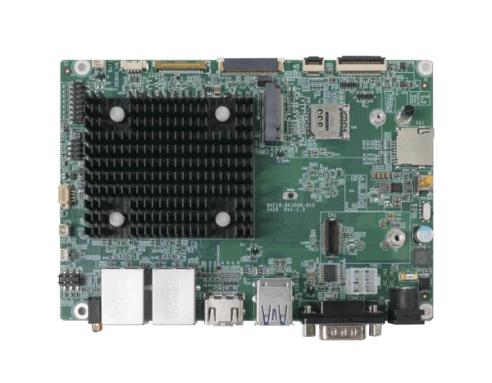

WAFER-RK3568

IEI
SKU: 09947500
3.5" Embedded CPU Card supports RK3568(Quad-code Cortex-A55), 4GB RAM, 32GB eMMC, 2x1GbE RJ45 ,2xRS232, 2xRS485, 2xUSB 3.0 Type A, 3xUSB 2.0 HOST, 1xHDMI2.0, MIPI DSI, Edp and CSI, MINI-pcie and SD Slot, DC 12V, Android 11.0 and Linux, RoHS
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
Processor Installed
Rockchip RK3568
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
SIM Card slots
Nano SIM
M.2
1
M.2 Form Factor
3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

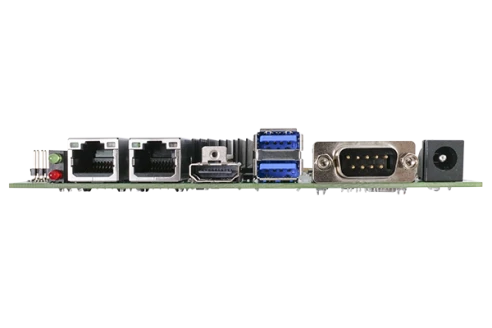

2xDB9, HDMI, 2xRJ45, 5xUSB, Mic In, Line Out
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
System Architecture
Form Factor
3.5"
CPU
Processor Installed
Rockchip RK3568
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
SIM Card slots
Nano SIM
M.2
1
M.2 Form Factor
3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 5xUSB, Mic In, Line Out
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
System Architecture
Form Factor
3.5"
CPU
Processor Installed
Rockchip RK3568
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
SIM Card slots
Nano SIM
M.2
1
M.2 Form Factor
3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 5xUSB, Mic In, Line Out
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
System Architecture
Form Factor
3.5"
CPU
Processor Installed
Rockchip RK3568
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
SIM Card slots
Nano SIM
M.2
1
M.2 Form Factor
3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 5xUSB, Mic In, Line Out
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg

Documentation
WAFER-RK3568_20230731_EN.pdf
Documentation
WAFER-RK3568_20230731_EN.pdf
Documentation
WAFER-RK3568_20230731_EN.pdf
Documentation
WAFER-RK3568_20230731_EN.pdf
