WAFER-PV-D4252

WAFER-PV-D4252

IEI
SKU: 06389300

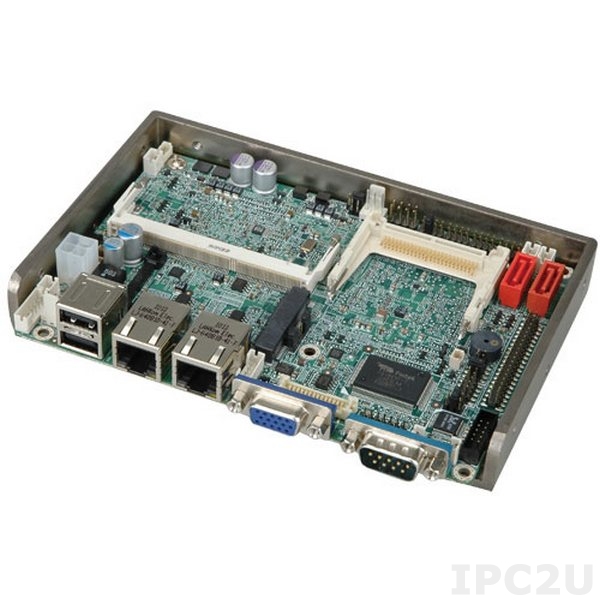

3.5" Embedded Intel Atom D425 1.8GHz CPU Card, Up to 2GB DDR3, VGA/LVDS, Dual GbE, CF Socket, USB, SATAII, Mini-PCIe
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom D425
Max CPU frequency
1.8 GHz
Number of CPU
1
Chipset
Chipset
Intel ICH8M
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
ECC
No
Maximum Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Intel GMA 3150
Interfaces
LVDS, VGA
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
8
USB 2.0
8
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888 HD
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
-20..65 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
