WAFER-JL-N5105

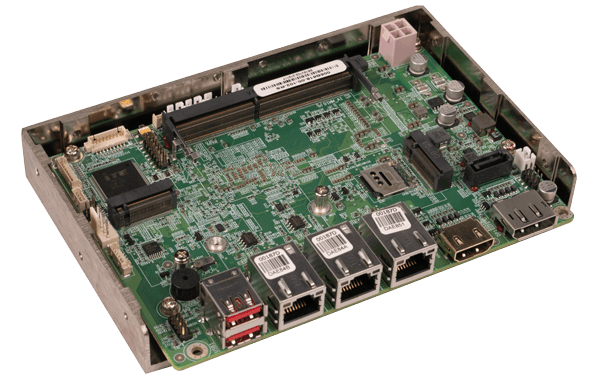

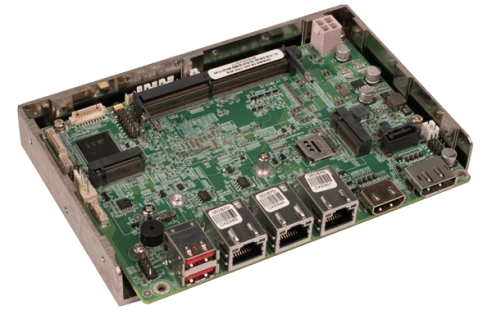

WAFER-JL-N5105

IEI
SKU: 09599600
3.5" Embedded Intel Celeron N5105, DDR4, HDMI, DP, 3x2.5GbE LAN, 2xRS-232, 2xUSB 3.2, 2xUSB 2.0, M.2 A-key, M.2 B-key, SATA 6Gb/s, SMBus, DIO, Ausio, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N5105
Max CPU frequency
2.9 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i225V
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
12
Extension Slots
SIM Card slots
1
M.2
2
Connectors
Internal Ports
2xCOM, 2xUSB 2.0
Connectors
HDMI, 3xRJ45, 2xUSB, Display Port
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.25 kg
Gross Weight
0.7 kg
