W24IK7T-OFA2/PAT
Winmate
SKU: 07854200

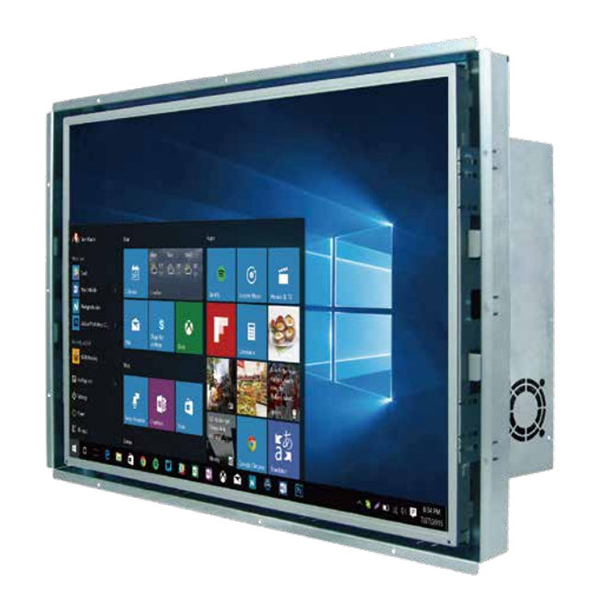

Open Frame Panel Computer 23.8", 1920x1080, resistive touch, Intel Core i7-7700T 2.9GHz CPU, 4GB RAM, 64GB SSD M.2, 2xCOM, 2xGbE LAN, 4xUSB 3.0, 1xDP 1.2, 1xHDMI 1.4, Audio, power input 12V DC
Price on request
Available
Available
Display
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Resistive
CPU
CPU Support Type
Core i5, Core i7
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 4xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11 kg
Gross Weight
12 kg
