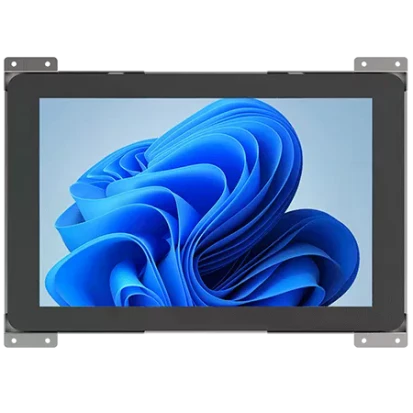

W10IAN3S-POA1
Winmate
SKU: 80215900

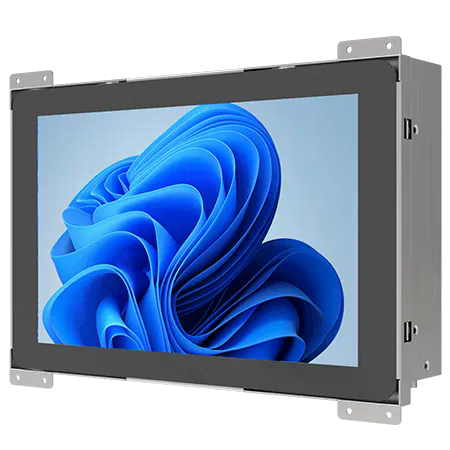

10.1" Open Frame Panel PC, PO Series, 1920x1200, 700 cd/m2, PCAP Touch, Intel N100 3.4GHz SoC, 8GB DDR5 RAM, 128GB NVME SSD, HDMI, 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xUSB Type-C DP Alt., 1xM.2 2230 Key-E, 12VDC-in with 50W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N100
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input, USB type C
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
264 mm
Height
190 mm
Depth
48 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.3 kg
Gross Weight
1.9 kg
