W22IT3S-SPA3-R

Winmate
SKU: 10954400

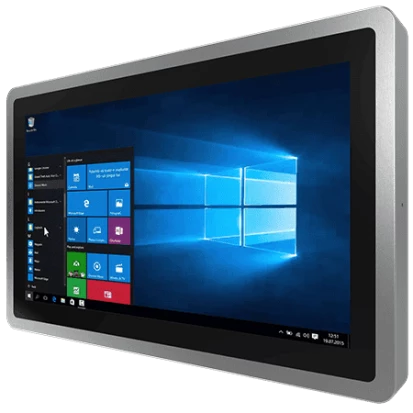

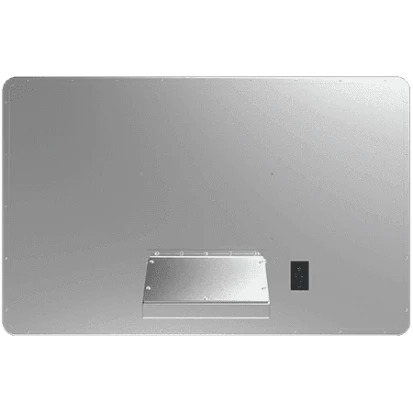

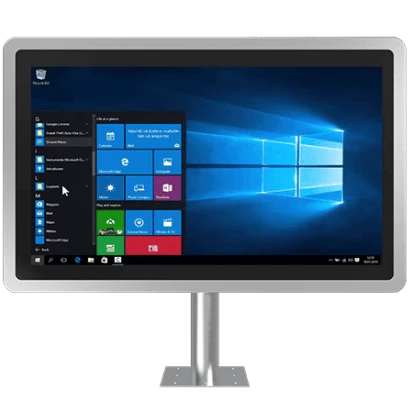

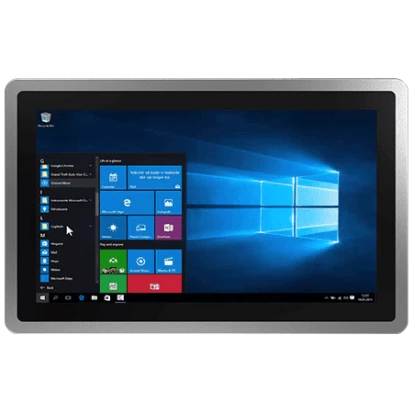

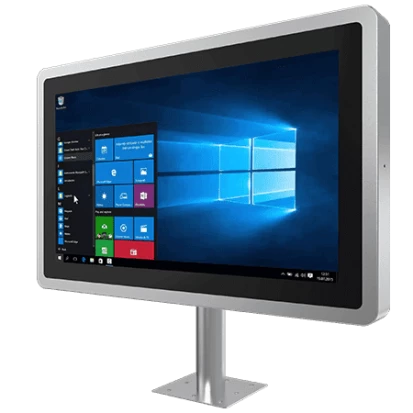

21.5" Rugged Fanless Panel PC, Stainless Series, IP65, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVME SSD, 3xM12 Connectors: (COM, 2xUSB, DC-in), 1xGbE LAN Waterproof, TPM 2.0, 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100, Arm, Yoke mounting
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
RJ45 Ethernet, M12 USB, 5-pin M12 DC, M12 (COM)
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
541 mm
Height
337 mm
Depth
56.2 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
9 kg
Gross Weight
10.5 kg
