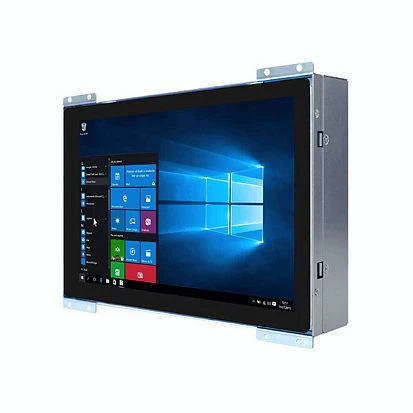

W10IE3S-POA1
Winmate
SKU: 57633700
10.1" Open Frame Panel PC, PO Series, 1920x1200, 700 cd/m2, Intel Celeron N6211 CPU, Up to 16GB DDR4 RAM, Up to 512GB M.2 SATA SSD, 1xHDMI Opt., 2xCOM, 2xUSB 3.2, 2x2.5GbE LAN, Audio, 1xM.2 2242 Key-B, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Open Frame
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6210
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
264 mm
Height
190 mm
Depth
48 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.3 kg
Gross Weight
1.8 kg
