W10IB3S-SPH1-B
Winmate
SKU: 08712500

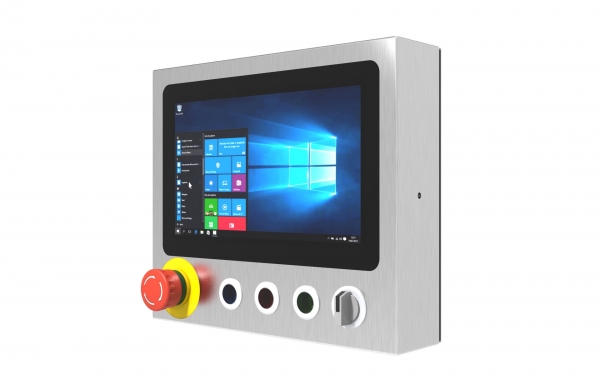

Rugged Fanless Panel PC 10,1" TFT LCD, projected capacitive touch, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L, 64GB SSD, IP65 connectors (2xUSB, LAN, COM, AC), Emergency and Flat buttons, power adapter AC DC
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
10.1 "
Maximum resolution
1024x600 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
Control Buttons
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, M12 DC-in
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
595 mm
Height
337 mm
Depth
69 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
8 kg
Gross Weight
10 kg
