W10IB3S-GSH1
Winmate
SKU: 56479800

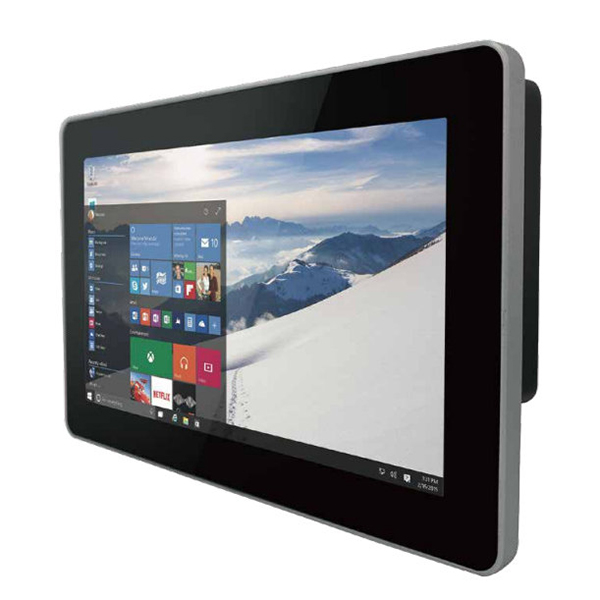

10.1" TFT LCD Full IP65 w. M12 connectors Panel PC, G-WIN Rugged Serie,, 1024x600, P-CAP Multi-Touch, Celeron N2930 1.83GHz, 2GB DDR3L, 64GB mSATA, 1xUSB, 1xGbE LAN, 1xRS232, 9-36V DC-In
Price on request
Available
Available
Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x600 Dots
Brightness
450 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Controller Type
Intel WG82574L
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
1
USB 2.0
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
RJ45 Ethernet, Audio Out
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
268 mm
Height
172 mm
Depth
35.7 mm
Operating Conditions
Vibration
1.60/1.96/2.18 g rms for XYZ / 5-500Hz
Dimensions
Gross Weight
1.6 kg
Construction
