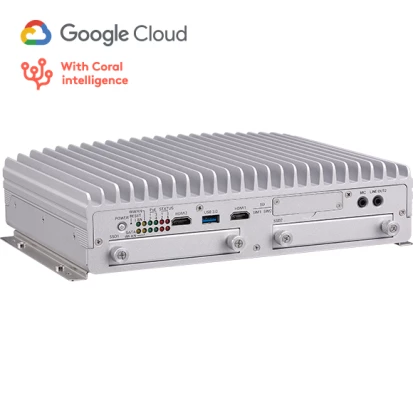

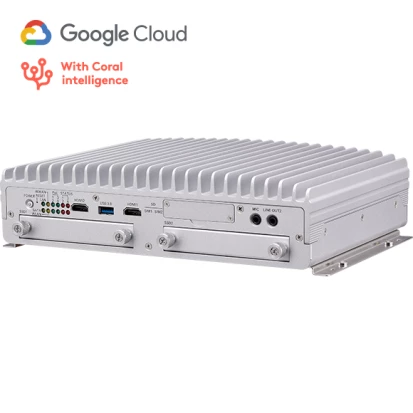

VTC-6222-GCIoT
NEXCOM
SKU: 80092600
In-Vehicle Edge AI System, Intel Atom E3950 CPU, 4GB DDR3L RAM, Google Coral ML TPU, 2xHDMI, VGA, 1xGbE LAN, 4xPoE LAN, COM, 1xUSB 3.0, 2xUSB 2.0, DB15 (2xCOM, CAN), 8-bit DIO, GPS, 2x2.5" Bay, 3xMini-PCIe Full/Half-Size, SD slot, Audio, 9-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
4
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Digital Input
Isolation DIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
SD Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 2
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
PoE LED, LAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, DB15 VGA, 2xHDMI, 5xRJ45 Ethernet, 3xUSB, Mic In, 1xDB15 DIO, DC input (terminal block), DB15 CAN Bus, 2xLine Out, SD card slot, 2xSIM Card Slot
System Power Input
Input Voltage DC
9..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
260 mm
Height
66.5 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Automotive
e13 Mark
Dimensions
Net Weight
3.2 kg
Gross Weight
3.8 kg
