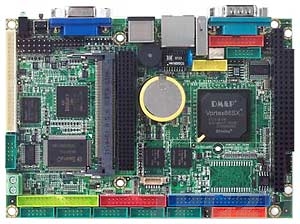

VSX-6127-NF-V2

ICOP
SKU: 56402000
3.5" Vortex86SX 300MHz SoC Embedded CPU Board with 128MB DDR2 RAM, VGA/LVDS, LAN, 4xCOM, 3xUSB, GPIO, CFast,
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Vortex86SX
Max CPU frequency
0.3 GHz
Chipset
Chipset
Vortex86 System-on-Chip
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Maximum Memory
0.5 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
XGI Volari Z9S
Interfaces
LVDS, LCD, VGA
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCI
1
luPC/104-Ps
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet, 1xUSB
Dimensions and weight
Width
102 mm
Length
144 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
0.5 kg
