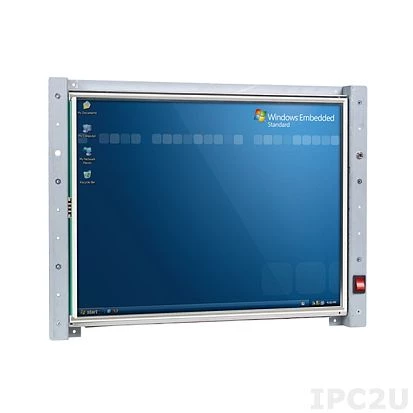

VOX-150-TS
ICOP
SKU: 05621400
15" TFT LCD Panel PC w/ touch screen, Vortex86MX 1GHz CPU Board, 512MB DDR2 RAM, VGA/LCD/LVDS, LAN, 6xCOM, 3xUSB, GPIO, FDD, CompactFlash Socket
Price on request
Available on order
Available on order
Construction
Construction Chassis
Open Frame
Mounting Configuration
Built-in, Panel
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR2
Default on Board Memory
0.25 GB
Ethernet
Total Ethernet
1
Interfaces
COM Total
1
RS-485
1
USB Total
1
Drive interfaces
CFast Slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45, 1xUSB, AC Input
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
47 W
Dimensions and weight
Width
368 mm
Height
278 mm
Depth
21 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
4.75 kg
Gross Weight
5.75 kg
