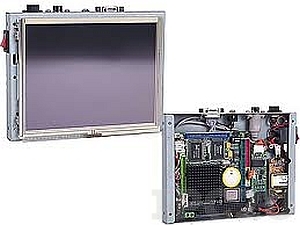

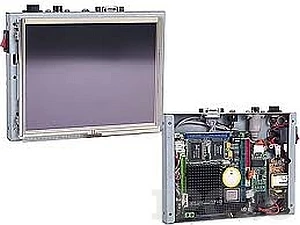

VOX-104
ICOP
SKU: 05620900
10.4" TFT LCD Panel PC, Vortex86MX 1GHz CPU Board, 512MB SDRAM, LAN, COM, Audio, USB, IDE 44pin, 47W External Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
500~1
CPU
Processor Installed
Vortex86DX
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Ethernet
Total Ethernet
1
Interfaces
COM Total
1
RS-485
1
USB Total
1
USB 2.0
1
Drive interfaces
CompactFlash Slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet, 1xUSB, AC Input
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
47 W
Dimensions and weight
Width
303 mm
Height
204 mm
Depth
21 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
