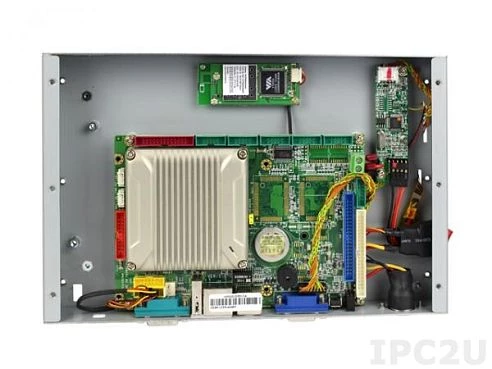

VOX-084-TS/VDX-6328
ICOP
SKU: 05955900

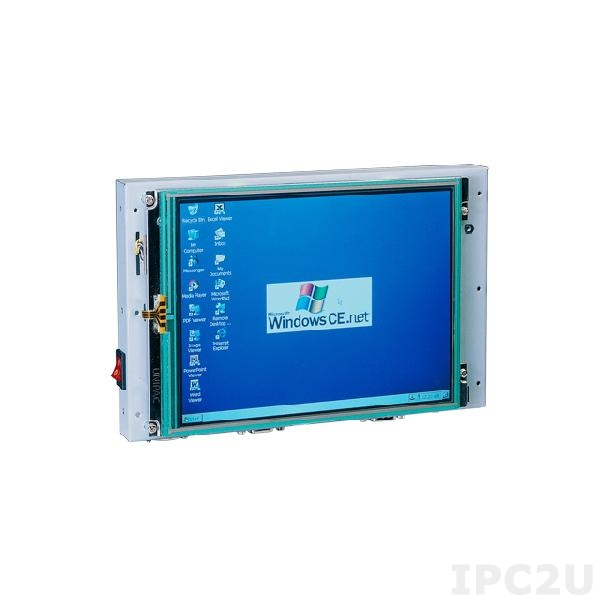

8.4" TFT LCD Panel PC, VDX-6328 Vortex86DX 800MHz CPU Board, 256MB DDR2 RAM, Res.T/S, VGA/LCD/LVDS, LAN, 6xCOM, 3xUSB, GPIO, FDD, CompactFlash Socket
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
220 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR2
Default on Board Memory
0.25 GB
Ethernet
Total Ethernet
1
Interfaces
COM Total
1
RS-485
1
USB Total
1
Drive interfaces
CompactFlash Slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet, 1xUSB, AC Input
System Power Input
Input Voltage DC
5..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
47 W
Dimensions and weight
Width
230.4 mm
Height
150 mm
Depth
38.4 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
2.2 kg
