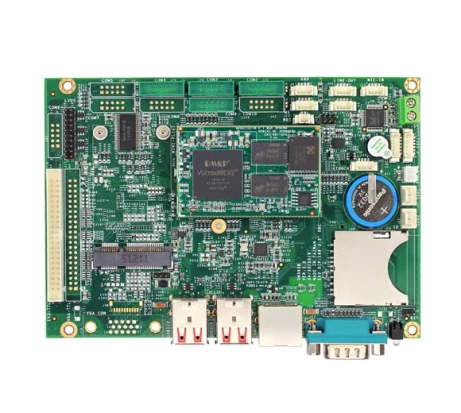

VEX2-6427-5C4NE

VEX2-6427-5C4NE

ICOP
SKU: 08601400
Vortex86EX2 600MHz CPU Module with 1GB DDR3, LCD, LVDS, 1xLAN, 5xCOM, 2xCAN, 4xUSB, 2xI2C, SD, Audio, 2xMiniPCIe, -20..70 C
Price on request
Available
Available
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Vortex86EX2
Max CPU frequency
0.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Assembly
Fixed on Board
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
3
RS-232/485
2
USB Total
4
USB 2.0
4
Audio
Audio Controller
Realtek ALC262
Drive interfaces
MicroSD
1
SD Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
5xDB9, LVDS, RJ45, 4xUSB, Mic In, Line In, Line Out, DB15 CAN Bus
Software
Operating System Compatibility
MS DOS, Windows CE 6.0, Windows Embedded Compact 7, Linux OS, QNX
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.5 kg
