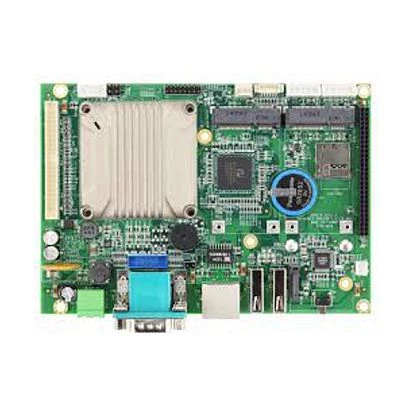

VEX-6225-43EE

VEX-6225-43EE

ICOP
SKU: 56401400
Vortex86EX 800MHz 3.5" CPU Module with 512MB DDR3, 1xLAN, 2xCOM, 2xUSB, SATA, Micro SD, PCIe, operating temp -20..70 C
Price on request
Available
Available
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Vortex86EX
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC262
Drive interfaces
MicroSD
1
Extension Slots
Total
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet
Software
Operating System Compatibility
MS DOS, Windows CE 6.0, Windows XP, Windows XP Embedded, Linux OS, POSReady, Windows CE 7.0
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.5 kg
