V1100-i5
NEXCOM
SKU: 57721500

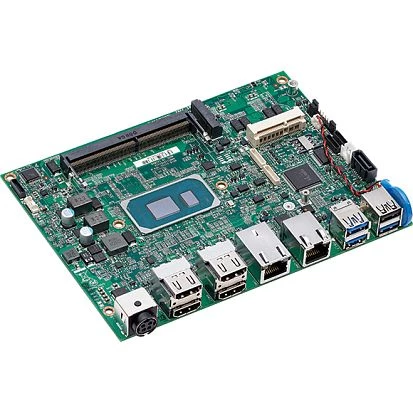

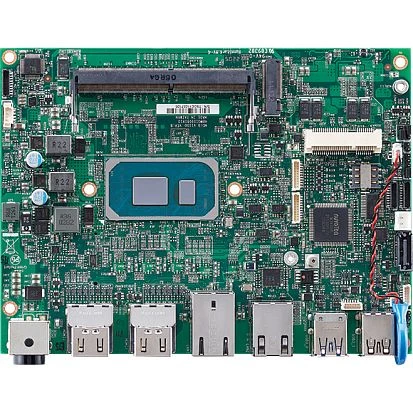

3.5" Embedded Mainboard, Intel 11th Gen Core i5-1145G7E 1.5GHz CPU, Up to 32GB DDR4 RAM, 4xHDMI, 1xGbE LAN, 1x2.5GbE LAN, 3xUSB 3.2, 5xUSB 2.0, 1xRS232/422/485, 1xRS232, 1x8-bit GPIO, 1xSATA 3, 2xM.2, 1xMini-PCIe, Audio header, 12VDC-in Jack, 0..60C
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i219-LM, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
5
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xRJ45 Ethernet, 4xUSB, DC Input, 4-pin DC input, 4xHDMI
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
123 mm
Length
165 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.25 kg
Gross Weight
0.35 kg
