USM-110A-BR120
Advantech
SKU: 08078300

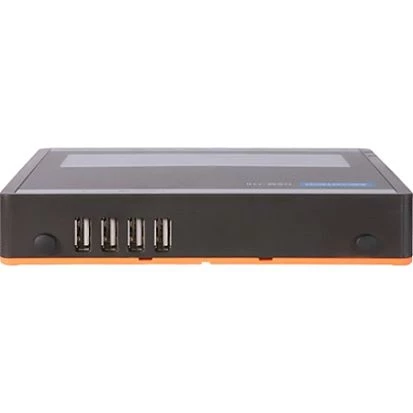

Embedded computer w/CPU Cortex-A17 Quad Core 1.6GHz, 2GB DDR3L, 16GB eMMC NAND Flash, 2xHDMI, GbE LAM, RS-232/422/485, 4xUSB 2.0, 1xOTG USB, Audio, MicroSD, SIM, Android 6.0
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration

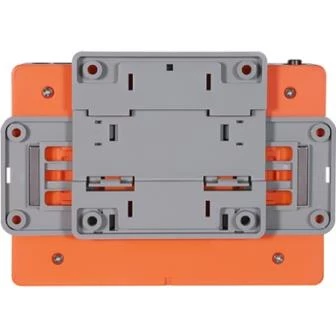

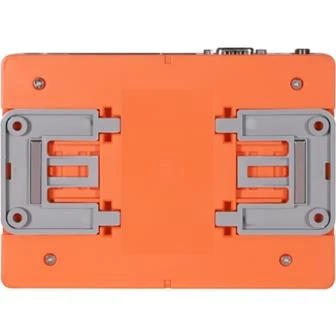

DIN-Rail mount, Desktop, Wall VESA 75, Pole Mount, Magnetic mount
Type
Fanless
CPU
Processor Installed
ARM Cortex-A17
Socket
CPU onboard
CPU Support Type
ARM Cortex
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Maximum Memory
2 GB
Graphic
Graphic Controller
Mali-T764
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
4
Drive interfaces
MicroSD
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors

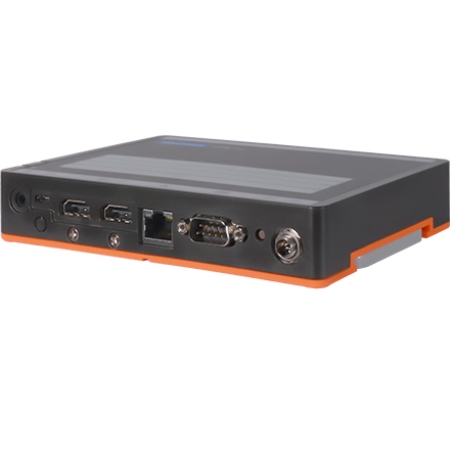

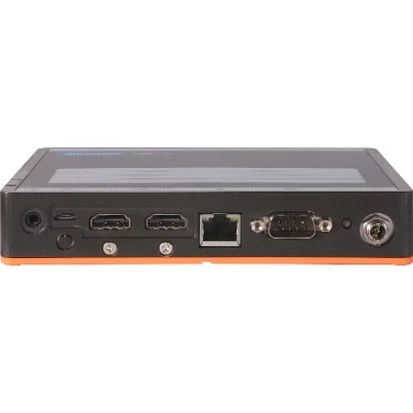

DB9, 2xHDMI, RJ45, 4xUSB, Line Out, DC Input, SIM Card Slot, 1xMicro USB, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Consumption
36 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
156 mm
Height
88 mm
Depth
112 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
Safety
CCC, CB, UL, BSMI
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
