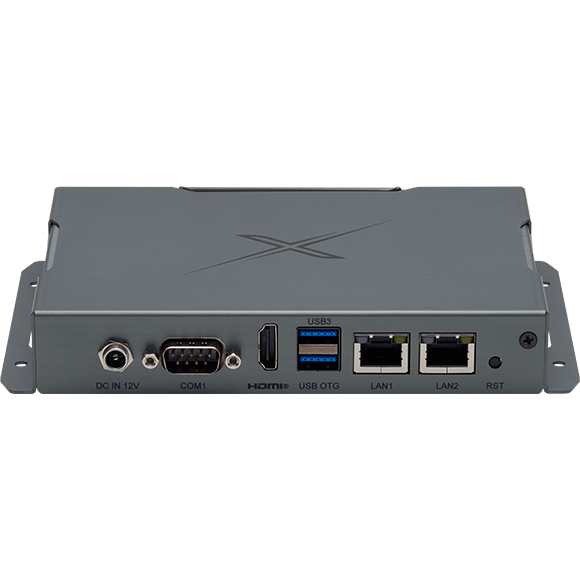

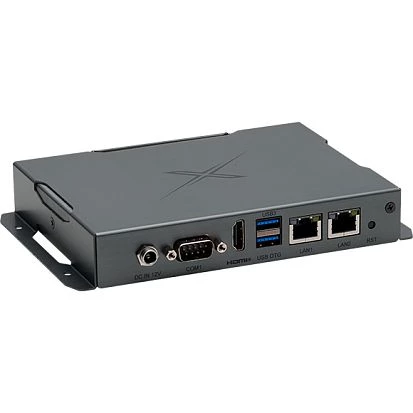

NDiS-B117

NDiS-B117

NEXCOM
SKU: 80093300
Fanless Visual Edge Box-PC, Rockchip RK3568 2.0GHz SoC, 4GB LPDDR4 RAM, 64GB eMMC, HDMI, 2xGbE LAN, 2xUSB, 1xCOM, 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in, Android 13
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Rockchip RK3568
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
3042 B, 2242 B
LED / Controls
Controls
1xReset
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android
Dimensions and weight
Width
148 mm
Height
25 mm
Depth
105.6 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.65 kg
Gross Weight
1.5 kg
