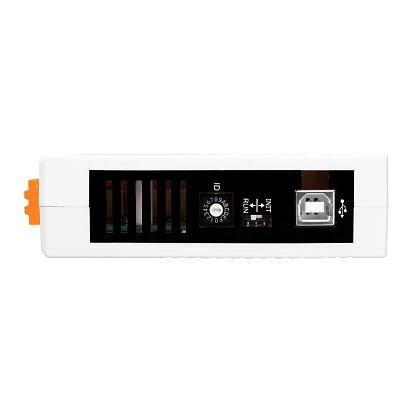

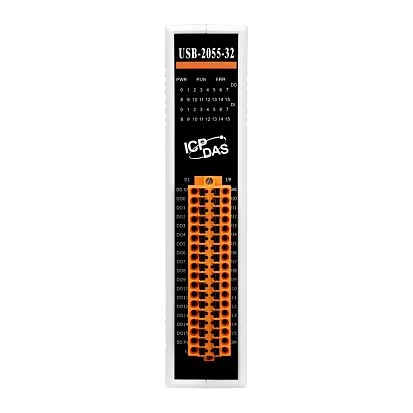

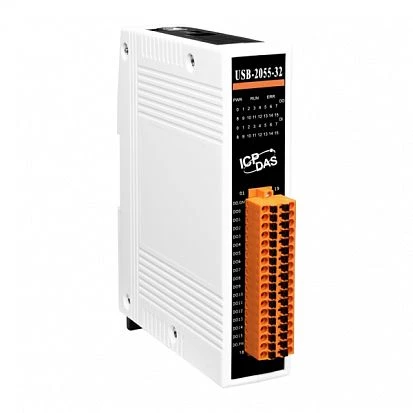

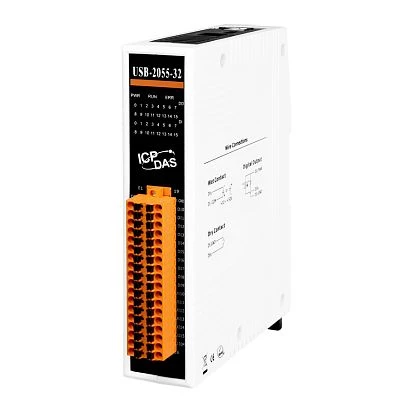

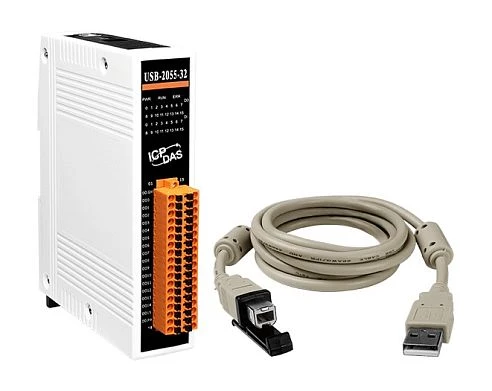

USB-2055-32
ICP DAS
SKU: 08331900
16-channel Isolated Digital Input and 16-channel Isolated Digital Output Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Max. load current
600 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
147 mm
Height
129 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.42 kg
Gross Weight
0.42 kg
