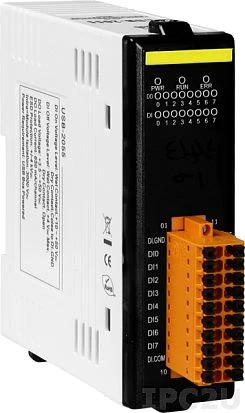

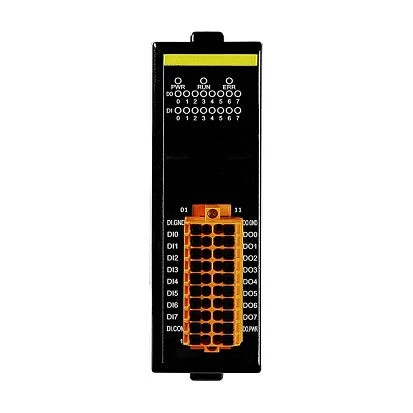

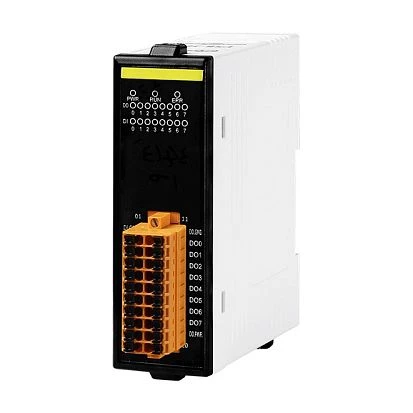

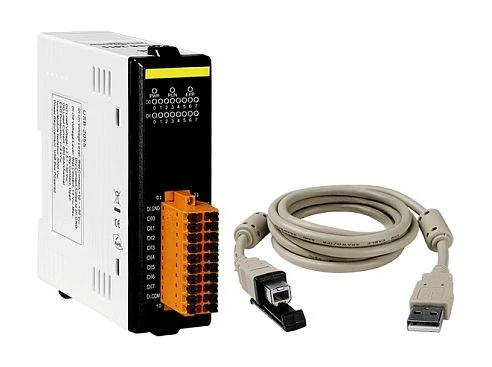

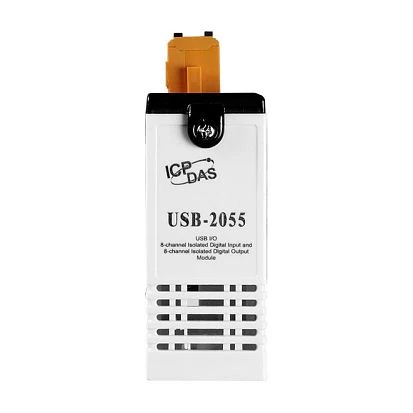

USB-2055
ICP DAS
SKU: 06578800
8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
500Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
35 mm
Depth
72 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
