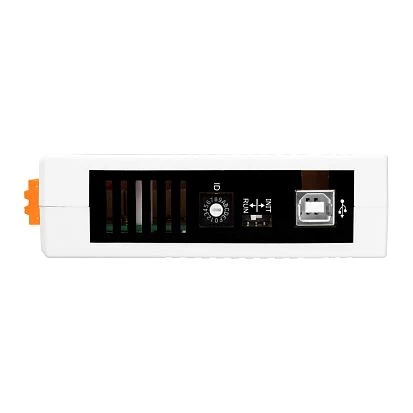

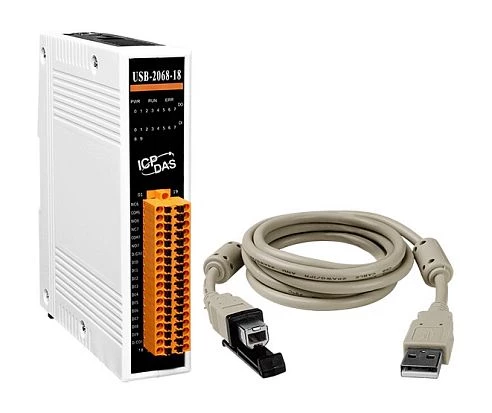

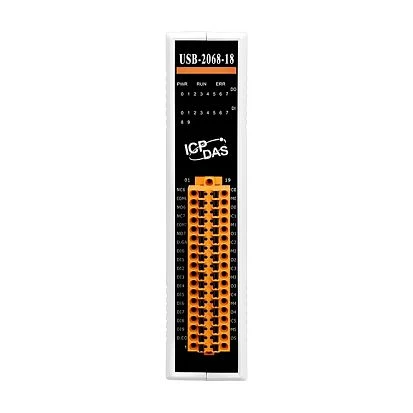

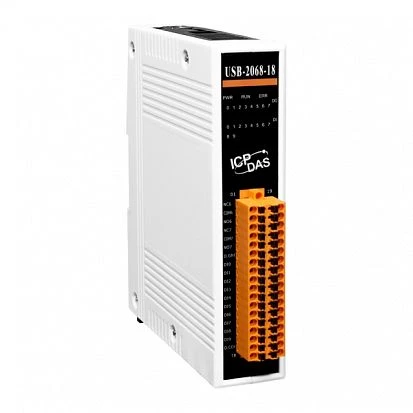

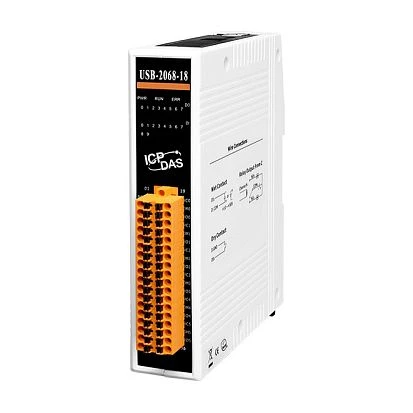

USB-2068-18
ICP DAS
SKU: 07359700
10-channel Digital Input and 8-channel Digital Output Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Digital Input
Total channels of digital input
10
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
16 Bit
Max frequency
0.5 kHz
Digital Output
Total channels of digital output
8
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Relay (Form C)
8
Contact rating of relay (Form C)
2A@30V DC, 0.25A@250V AC
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
129 mm
Height
147 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
