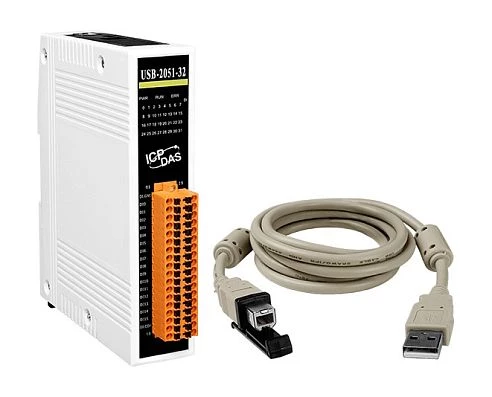

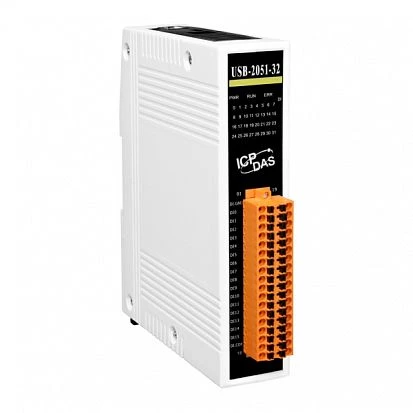

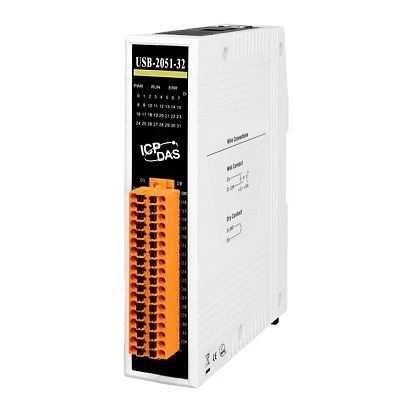

USB-2051-32
ICP DAS
SKU: 07359600
32-channel Isolated Digital Input Module
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Digital Input
Total channels of digital input
32
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
0.5 kHz
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
129 mm
Height
147 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
