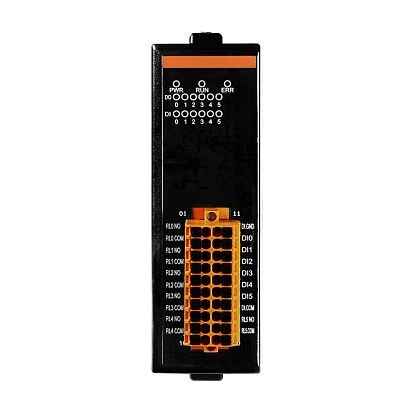

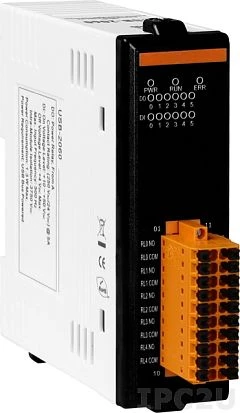

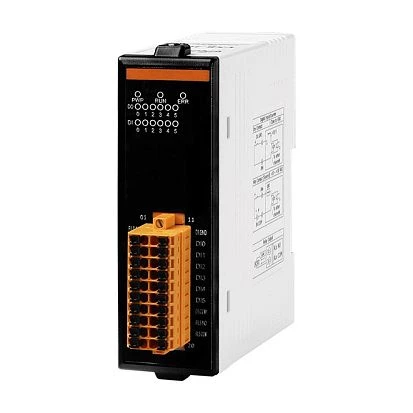

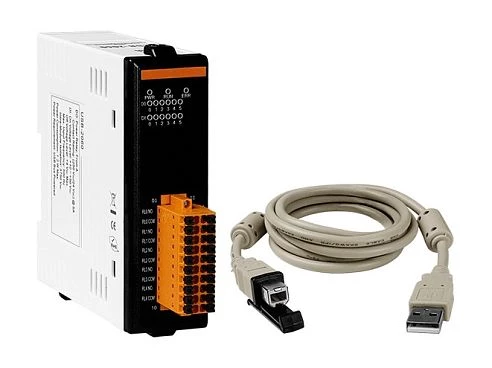

USB-2060
ICP DAS
SKU: 06578900
6-channel Isolated Digital Input and 6-channel Relay Output Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Digital Output
Total channels of digital output
6
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
35 mm
Depth
72 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
