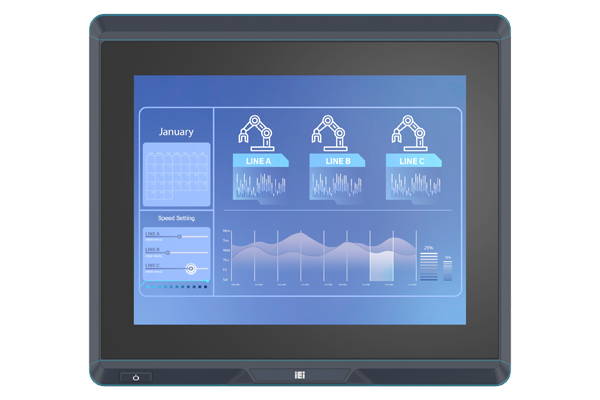

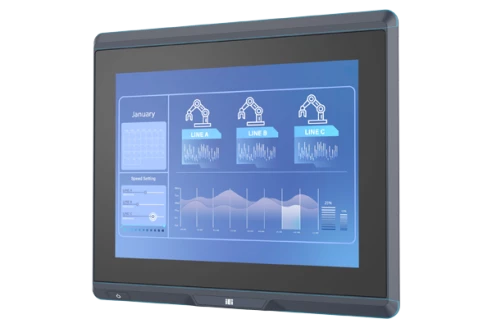

UPC-F12M1-RPLP-i3/PC/8G
IEI
SKU: 11121800
12.1" Rugged Panel PC, IP66 Full, 1024x768, 600cd/m2, PCAP Touch, Intel Core i3-1315URE CPU, 8GB LPDDR4x RAM, 1x2.5GbE M12 LAN, 2xUSB 2.0 M12, 1xCOM M12, 1xCAN M12, WiFi/BT Opt., 1xM.2 Key-M, 1xM.2 Key-B, 9-36VDC-in M12
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
600 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i3-1315URE
Socket
FCBGA1744
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors
M12 USB, M12 DC-in, M12 LAN, M12 COM, M12 CAN Bus
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
279 mm
Height
316 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5 kg
Gross Weight
6.2 kg
