TH35-RK3399-Series

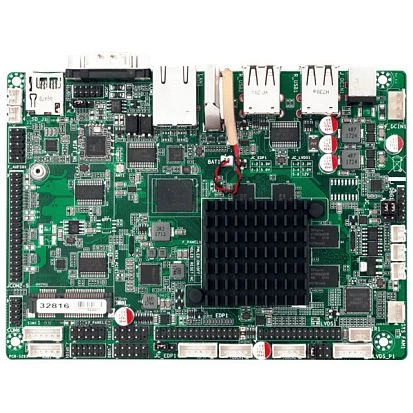

TH35-RK3399-Series

Technica
SKU: 57375700
3.5" Embedded SBC with Rockchip RK3399 SoC 2-Core Cortex-A72 + 4-Core Cortex-A53, 1GB / 2GB / 4GB onboard DDR3L, eMMC 8GB / 16GB /32GB, 1xHDMI/1xeDP/1xLVDS, 1xGbit LAN, 1xSATA, 6xCOM, 6xUSB, 1xMini-PCIe with SIM , Audio, 12V DC-in, 0..+60C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
Processor Installed
Rockchip RK3399 64-bit (dual core ARM Cortex-A72, quad core ARM Cortex-A52)
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
2xDIMM
Maximum Memory
4 GB
Assembly
Removable
Graphic
Interfaces
LVDS, HDMI, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
6
RS-232
6
USB Total
6
USB 2.0
6
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
LVDS, HDMI
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
