TH35-J6412

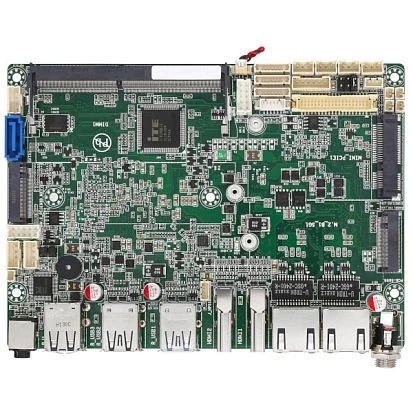

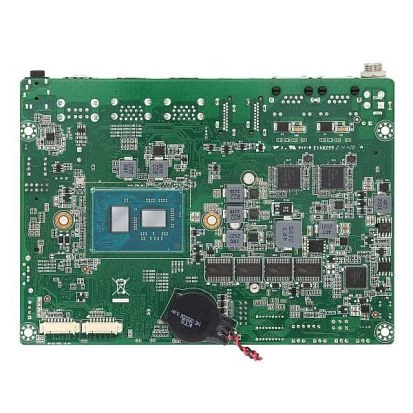

TH35-J6412

Technica
SKU: 57399300
3.5" Embedded SBC Intel Celeron J6412, up to 16GB DDR4 RAM, 2xHDMI, 1xLVDS/eDP, 2xGbit LAN, 1xSATA, 1xM.2 Key-B, 1xM.2 Key-M, 6xCOM, 10xUSB, Audio, 10%..95RH, 12V DC-in, -20..+60C operating temp.
Price on request
Available
Available

Cable Set 1
Price with VAT
Price on request
Cable Set 1
Price with VAT
Price on request

System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Elkhart Lake
Max CPU frequency
2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
LVDS, HDMI, eDP
Ethernet
Controller Type
Intel i211, Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/485
1
USB Total
10
USB 2.0
7
USB v3.x
3
Audio
Audio Controller
Realtek ALC663 5.1
Drive interfaces
mSATA
1
Extension Slots
Total
3
SIM Card slots
Yes
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Internal Ports
2xCOM, 4xCOM, 4xUSB 2.0, GPIO
Connectors
6xDB9, LVDS, 2xHDMI, 2xRJ45, 10xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
