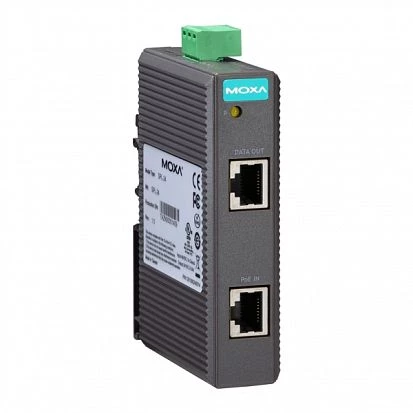

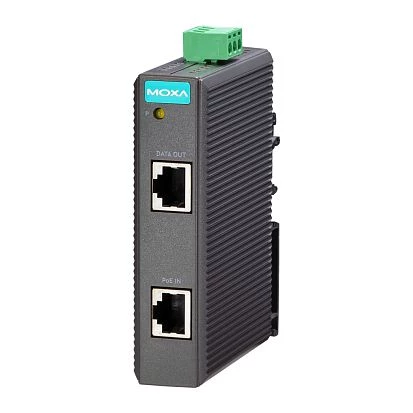

SPL-24-T
MOXA
SKU: 03719800
Power-over-Ethernet Splitter, Output 24VDC/12.95W, Extended Operating Temperature -40...+75°C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
PoE 10/100 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
44..75 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
24.9 mm
Depth
86.2 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Marine grade
DNV, GL, LR, ABS, NK
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.1 kg
Gross Weight
0.2 kg
