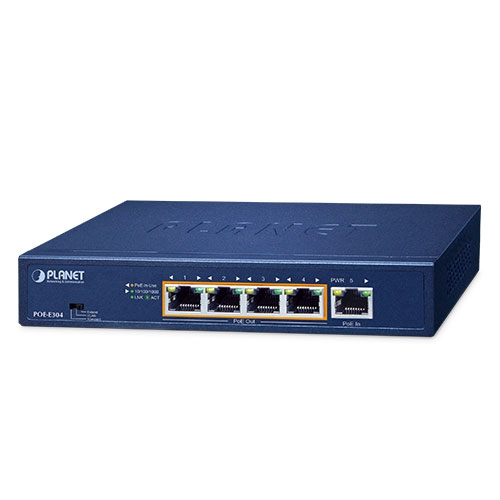

POE-E304
Planet
SKU: 57109300
Gigabit PoE Extender, 1x10/100/1000Base-T with PoE++, 4x10/100/1000Base-T with PoE, 50..56 VDC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
PoE 10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
16 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
50..56 V
Dimensions and weight
Width
168 mm
Depth
94 mm
Height
32 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.42 kg
Gross Weight
0.9 kg
