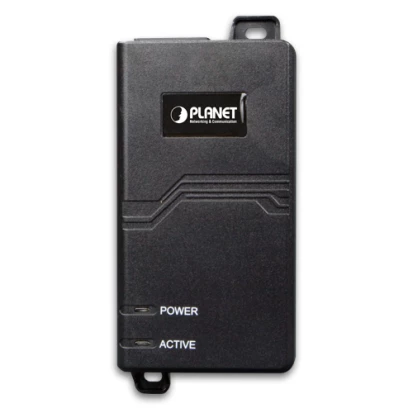

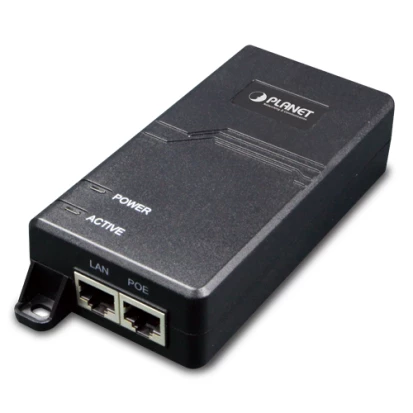

POE-163
Planet
SKU: 57108400
Gigabit High Power over Ethernet Injector IEEE 802.3at (10/100/1000Mbps, Mid-span, 30 watts), 50..54VDC-in, Operating Temperature 0..50C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
115 mm
Depth
62.5 mm
Height
31 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart A Class B
Dimensions
Net Weight
0.19 kg
Gross Weight
0.6 kg
