IPOE-470-12V
Planet
SKU: 57296600

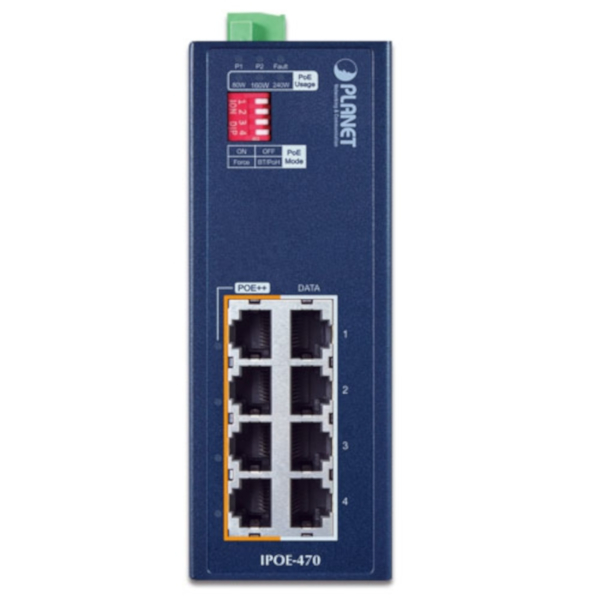

IP30 Industrial 4-port 10/100/1000T 95W 802.3bt PoE++ Injector Hub w/ 12V Booster 240 Watts PoE budget, PoE Usage LED, BT&PoH/Force DIP switch, Dual 12..54V DC-In, -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Power Budget
251 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
12..54 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
87.8 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC60068-2-6
Shock
IEC60068-2-27
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.49 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Power Budget
251 W
