SP-120R-1J64

SP-120R-1J64

Arbor
SKU: 57857700

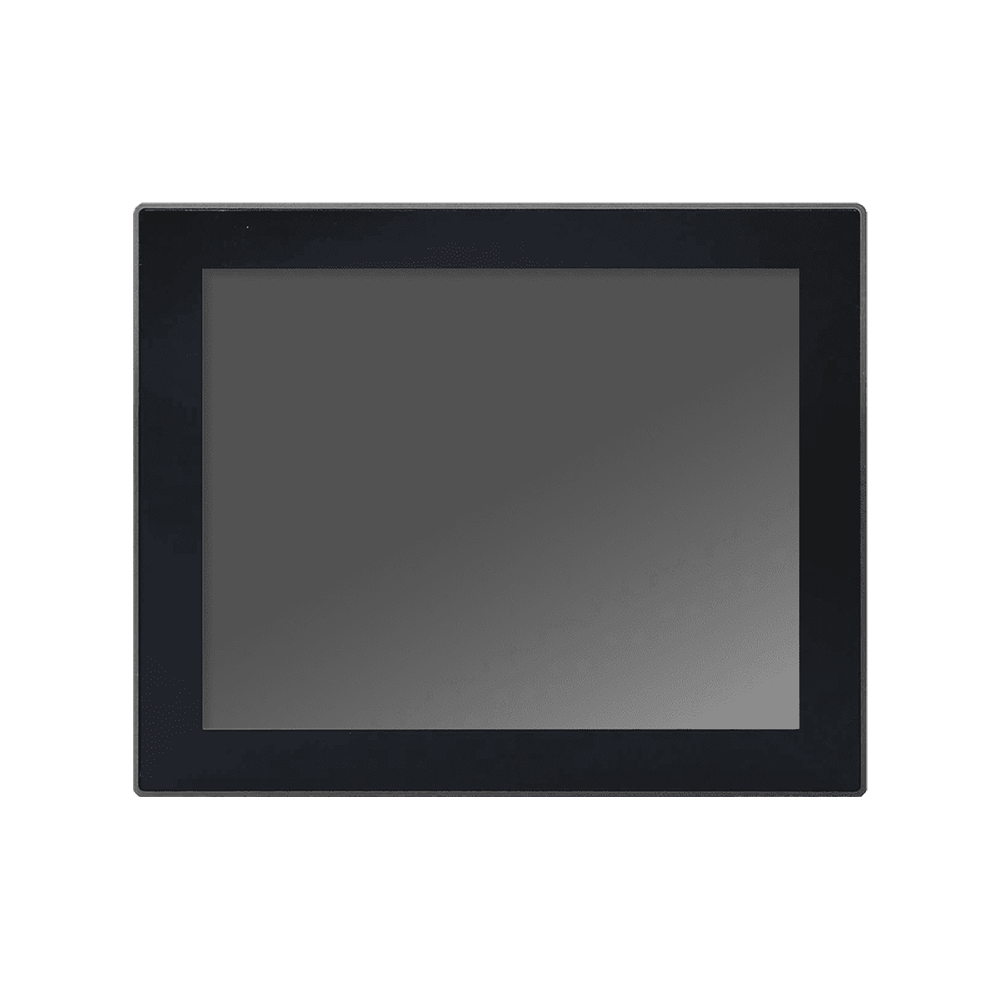

12.1" Fanless Panel PC, IP66 Front, 1024x768, 450cd/m2, Resistive Touch, Intel Celeron J6412 CPU, up to 32GB DDR4, HDMI, 2xGbE LAN, 2xCOM, 2xUSB2.0, 2xUSB3.1, 1xM.2 2242 (SATA), 1xMiniPCIe, 1xM.2 2230, 12-36VDC-in, -10..60C
Price on request
Available
Available

External Power Adapter
Price with VAT
Price on request
External Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
307 mm
Height
241.6 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Vibration
Random Vibration: 5~500Hz, 2Grms operation; Sine Vibration: 5~500Hz, 2G Non-operation
Shock
10g 11ms operation, 30g 11ms Non-operation
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.9 kg
Gross Weight
3.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
307 mm
Height
241.6 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Vibration
Random Vibration: 5~500Hz, 2Grms operation; Sine Vibration: 5~500Hz, 2G Non-operation
Shock
10g 11ms operation, 30g 11ms Non-operation
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.9 kg
Gross Weight
3.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
307 mm
Height
241.6 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Vibration
Random Vibration: 5~500Hz, 2Grms operation; Sine Vibration: 5~500Hz, 2G Non-operation
Shock
10g 11ms operation, 30g 11ms Non-operation
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.9 kg
Gross Weight
3.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
307 mm
Height
241.6 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Vibration
Random Vibration: 5~500Hz, 2Grms operation; Sine Vibration: 5~500Hz, 2G Non-operation
Shock
10g 11ms operation, 30g 11ms Non-operation
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.9 kg
Gross Weight
3.4 kg

Documentation
SP-120R-1J64-Datasheet.pdf SP-181C-1J64-User-Manual.pdf
Documentation
SP-120R-1J64-Datasheet.pdf SP-181C-1J64-User-Manual.pdf
Documentation
SP-120R-1J64-Datasheet.pdf SP-181C-1J64-User-Manual.pdf
Documentation
SP-120R-1J64-Datasheet.pdf SP-181C-1J64-User-Manual.pdf

Get a Quote

Arbor
SKU: 57857700
SP-120R-1J64
SP-120R-1J64

Recommended products

QEC-PPC-M-150TP QEC-PPC-M-150TP QEC-PPC-M-150TP
ICOP
QEC-PPC-M-150TP
Fanless Panel PC with 15" 1024x768 TFT LCD, Resistive Touch, Vortex86EX2 M:533MHz/S:400MHz, 512MB/1GB DDRIII, 2GB SLC eMMC, EtherCAT/Modbus/Ethernet, 3xUSB 2.0, 1xUSB-C, 2xEtherCAT RJ45, 1xGbE PoE LAN, HD Audio, 0...+60шC, 12-50VDC-in
APPC210-C21-01 APPC210-C21-01 APPC210-C21-01 APPC210-C21-01
NEXCOM
APPC210-C21-01
21.5" Fanless Panel PC, IP65 Front, 1920x1080, 500cd/m, PCAP Touch, Intel Ultra 5 125U 4.3GHz CPU, 8GB DDR5 RAM, HDMI, 4xGbE LAN, 4xUSB 3.2, 1xCOM, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xMiniPCIe, 12/19/24VDC-in
APPC160-C21-01 APPC160-C21-01 APPC160-C21-01 APPC160-C21-01
NEXCOM
APPC160-C21-01
15.6" Fanless Panel PC, IP65 Front, 1920x1080, 400cd/m, PCAP Touch, Intel Ultra 5 125U 4.3GHz CPU, 8GB DDR5 RAM, HDMI, 4xGbE LAN, 4xUSB 3.2, 1xCOM, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xMiniPCIe, 12/19/24VDC-in
GOT112A-TWL-WCD GOT112A-TWL-WCD GOT112A-TWL-WCD
AXIOMTEK
GOT112A-TWL-WCD
12.1" Fanless Panel PC, IP65/NEMA4 Front, 1280x800, 400cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, 2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
GOT115A-TWL-WCD GOT115A-TWL-WCD GOT115A-TWL-WCD
AXIOMTEK
GOT115A-TWL-WCD
15.6" Fanless Panel PC, IP65/NEMA4 Front, 1366x768, 400cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, 2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
GOT110A-TWL-WCD GOT110A-TWL-WCD GOT110A-TWL-WCD GOT110A-TWL-WCD
AXIOMTEK
GOT110A-TWL-WCD
10.1" Fanless Panel PC, IP65/NEMA4 Front, 1280x800, 350cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, SIM slot, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
iPPC-6831-IoT iPPC-6831-IoT iPPC-6831-IoT
ICP DAS
iPPC-6831-IoT
15" Touch Panel PC with Intel Atom E3845 1.91GHz CPU, 4GB DDR3, 128KB MRAM, 32GB SSD, 2xGB LAN, 3xUSB 2.0, 16GB CF, 3 expansion slots and WES7 OS, NEMA4/IP65 Front Panel
PPC-150P-TGL-64G PPC-150P-TGL-64G PPC-150P-TGL-64G PPC-150P-TGL-64G
ICOP
PPC-150P-TGL-64G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
SP-241C-1N305 SP-241C-1N305 SP-241C-1N305
Arbor
SP-241C-1N305
23.8" Fanless Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i3-N305 CPU, Up to 16GB DDR5 RAM, HDMI, 2x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 2xUSB 2.0, 1x2.5" Bay, 1xM.2 Key-M (SATA), 1xM.2 Key-E, 10-36VDC-in
PPC-150P-TGL--M PPC-150P-TGL--M PPC-150P-TGL--M PPC-150P-TGL--M
ICOP
PPC-150P-TGL--M
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-150P-TGL-8G PPC-150P-TGL-8G PPC-150P-TGL-8G PPC-150P-TGL-8G
ICOP
PPC-150P-TGL-8G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-150P-TGL-32G PPC-150P-TGL-32G PPC-150P-TGL-32G PPC-150P-TGL-32G
ICOP
PPC-150P-TGL-32G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 32GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PALD-090T-PCAP--M PALD-090T-PCAP--M PALD-090T-PCAP--M PALD-090T-PCAP--M
ICOP
PALD-090T-PCAP--M
9" Fanless Panel PC, IP65 Front, 1024x600, 300cd/m2, PCAP Touch, Intel Alder Lake N50 CPU, Up to 16GB DDR5 RAM, 1x2.5GbE LAN, 1xCOM, 2xUSB 3.2, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 12-36VDC-in
PPC-150P-TGL-16G PPC-150P-TGL-16G PPC-150P-TGL-16G PPC-150P-TGL-16G
ICOP
PPC-150P-TGL-16G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 16GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-16G PPC-104T-TGL-16G PPC-104T-TGL-16G PPC-104T-TGL-16G
ICOP
PPC-104T-TGL-16G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 16GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-32G PPC-104T-TGL-32G PPC-104T-TGL-32G PPC-104T-TGL-32G
ICOP
PPC-104T-TGL-32G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 32GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-8G PPC-104T-TGL-8G PPC-104T-TGL-8G PPC-104T-TGL-8G
ICOP
PPC-104T-TGL-8G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-64G PPC-104T-TGL-64G PPC-104T-TGL-64G PPC-104T-TGL-64G
ICOP
PPC-104T-TGL-64G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
