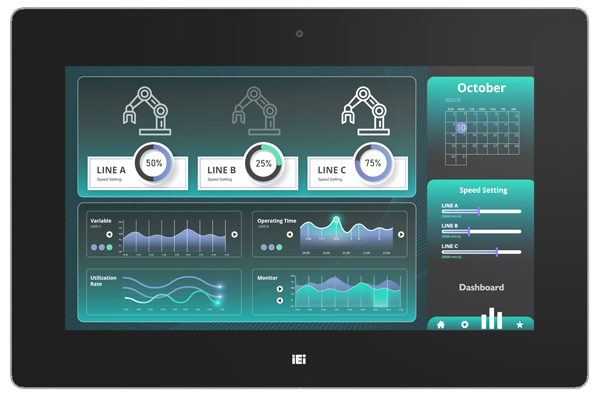

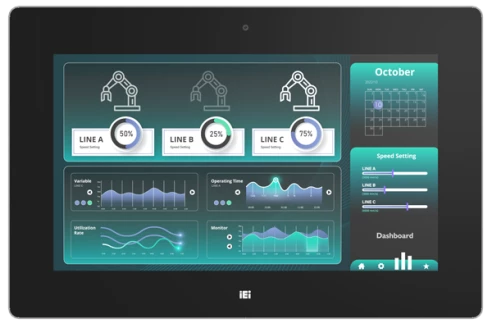

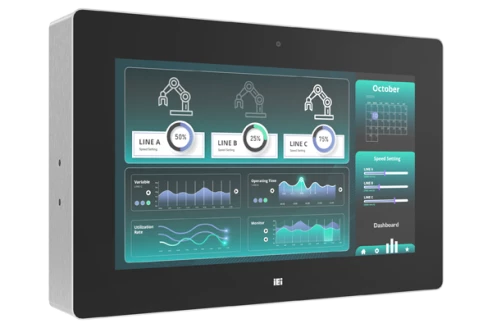

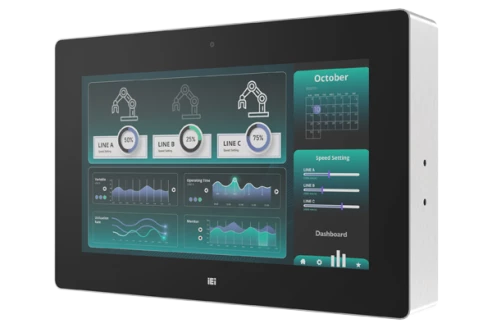

SHIELD-215-R4C
IEI
SKU: 80163600
21.5" Rugged Panel PC, IP66 Full, 1920x1080, 500cd/m2, PCAP Touch, UV/AR Coat., Intel Atom x7835RE CPU, 8GB DDR5 RAM, HDMI, M12 Con. (2x2.5GbE LAN, 1xUSB 2.0, 2xCOM, CAN, GPIO), 1xUSB 3.2, WiFi/BT Opt., 4xM.2 (2xKey-M/Key-B/Key-E), 10-28VDC-in M20
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100, Yoke mounting
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7835RE
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

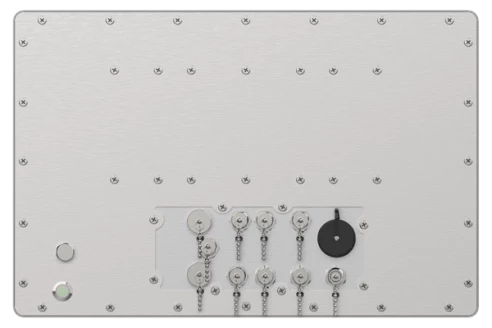

1xUSB, M12 DC-in, 2xM12 LAN, 1xM12 A-code USB, 2xM12 COM, M12 CAN Bus, M12 GPIO
System Power Input
Input Voltage DC
10..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
558.8 mm
Height
357.91 mm
Depth
71.9 mm
Operating Conditions
Operating Temperature
-30..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
8.5 kg
Gross Weight
10 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100, Yoke mounting
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
