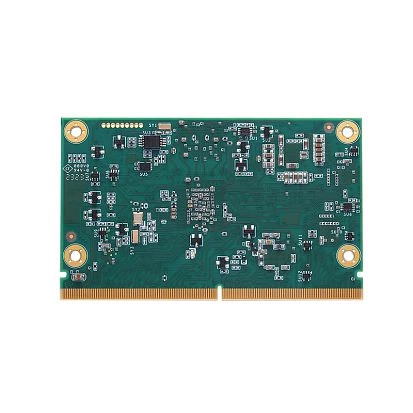

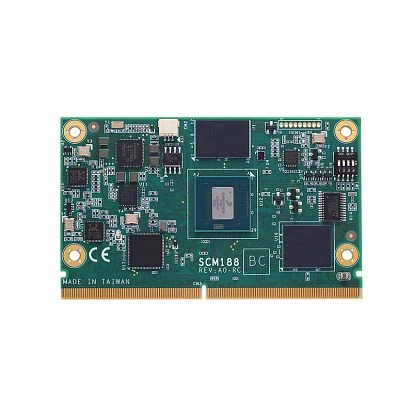

SCM188-2R16E-I

SCM188-2R16E-I

AXIOMTEK
SKU: 11212700
SMARC 2.1, NXP i.MX 8M Plus SoC Quad A53, 2GB RAM, 16GB eMMC, SDIO 3.0, HDMI, LVDS,2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 3xI2C, 2xI2S, 5VDC
Price on request
Available
Available

System Architecture
Form Factor
Smarc
CPU
Processor Installed
NXP i.MX 8M Plus
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
2 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Interfaces
LVDS, HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
14
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Software
Operating System Compatibility
Linux kernel 5.x
Dimensions and weight
Width
82 mm
Length
50 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
