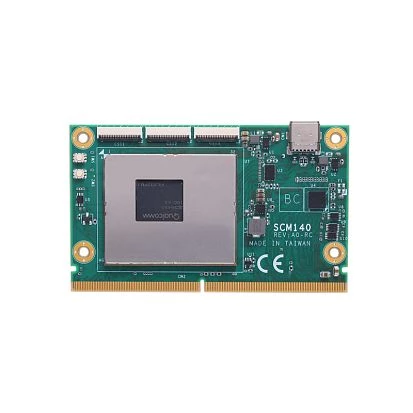

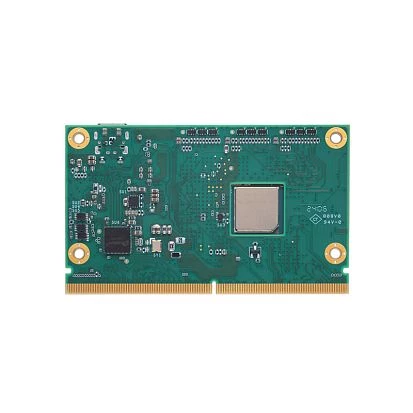

SCM140

AXIOMTEK
SKU: 11185300
SMARC 2.1 SoM, Qualcomm QCS6490,LPDDR4x up 8Gb RAM, UFS 128Gb,HDMI,2xGbE,4xUSB, PCle Gen3,MIPI CSI,SDIO,GPIO,SPI,4xUART
Price on request
Available
Available

System Architecture
Form Factor
Smarc
CPU
Processor Installed
Qualcomm QCS6490
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422
2
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
14
Installed drive
1st Storage Capacity
128 GB
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
82 mm
Length
50 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
