SCM186-4R8E-C2

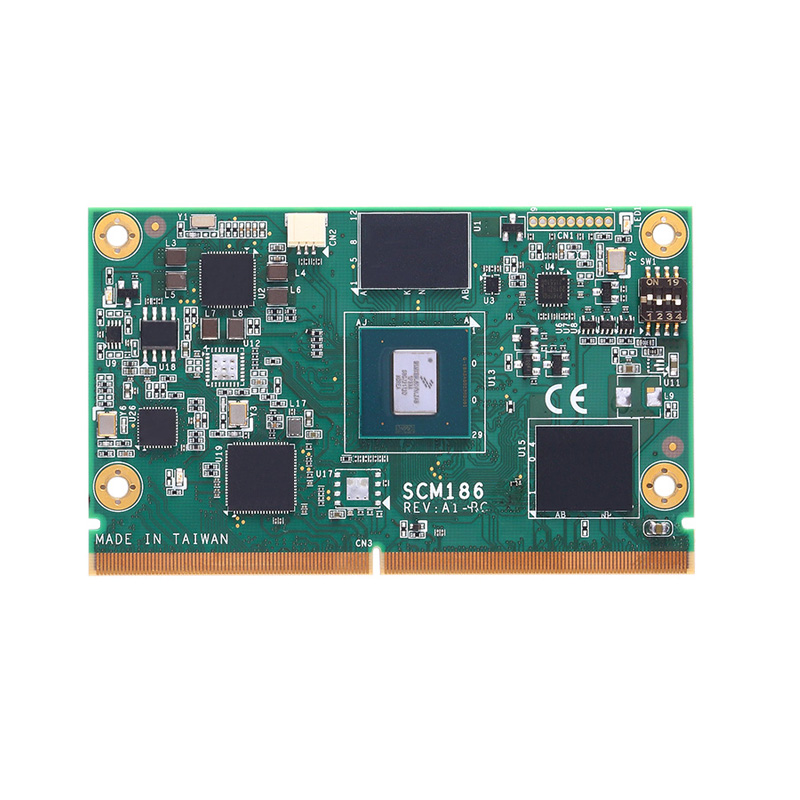

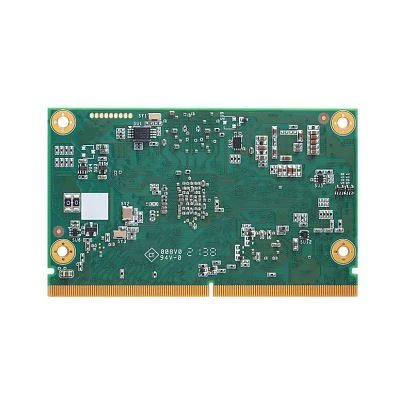

SCM186-4R8E-C2

AXIOMTEK
SKU: 10988000
SMARC 2.0, NXP i.MX 8M Plus SoC Quad A53, 4GB RAM, 8GB eMMC, HDMI, LVDS, GbE LAN, 2xUSB 3.0, 2xUSB 2.0, 1xUSB 2.0 OTG, 3xI2C, 1xI2S, 3.3-5.25VDC
Price on request
Available
Available

System Architecture
Form Factor
Smarc
CPU
Processor Installed
NXP i.MX 8M Plus
Max CPU frequency
1.8 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Maximum Memory
4 GB
Assembly
Fixed on Board
Graphic
Interfaces
LVDS
Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
3
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
12
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Dimensions and weight
Width
82 mm
Length
50 mm
Operating Conditions
Operating Temperature
0..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
