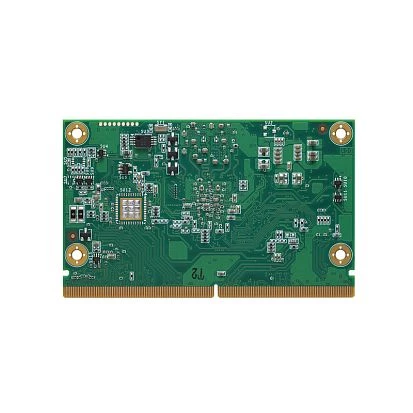

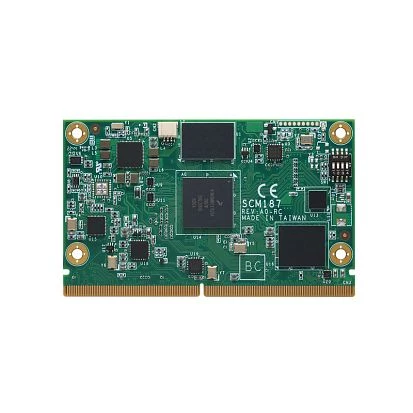

SCM187-2R8E-IL

SCM187-2R8E-IL

AXIOMTEK
SKU: 10988200
SMARC 2.0, NXP i.MX8M Mini Quad A53, 2GB RAM, 8GB eMMC, LVDS, GbE LAN, 3xUSB 2.0, 4xUART, SPI, QSPI, 14xGPIO, 3xI2C, 2xI2S, 2xCAN, 5VDC-in
Price on request
Available
Available

System Architecture
Form Factor
Smarc
CPU
Processor Installed
NXP i.MX8M Mini Quad
Max CPU frequency
1.6 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Interfaces
LVDS
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
USB Total
3
USB 2.0
3
Digital Input-Output
Channels of DIO
14
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Software
Operating System Compatibility
Linux kernel 5.x
Dimensions and weight
Width
82 mm
Length
50 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
