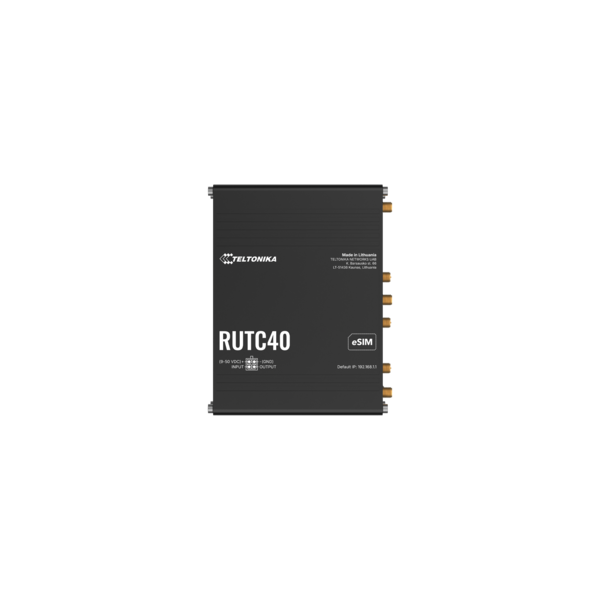

RUTC40 GLOBAL eSIM
Teltonika Networks
SKU: 80330600
GLOBAL 4G EDGE ROUTER, IP30, Wi-Fi 6, Mediatek Dual-core 1.3 GHz, ARM Cortex A53, 1x10/100/1000 Mbps WAN, 4x10/100/1000 Mbps LAN, 1xDI, 1xDO, 1xUSB, 2xSIM, 9..30 VDC, Operating Temperature -40..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Interfaces
USB Total
1
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Security
WPA2-Enterprise
Antenna characteristics
Cellular interfaces
4G
Function
Wi-Fi
Extension Slots
SIM Card slots
2, Mini-SIM
Additional Functions
GPS
GPS, GLONASS
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, BGP
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, PPP, PPPoE
IEEE Standard
ieee_802.3, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
System Power Input
Input Voltage DC
9..50 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
130.4 mm
Depth
42.6 mm
Height
104 mm
Operating Conditions
Operating Temperature
-40..65 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, WEEE, EAC
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
