TRB141

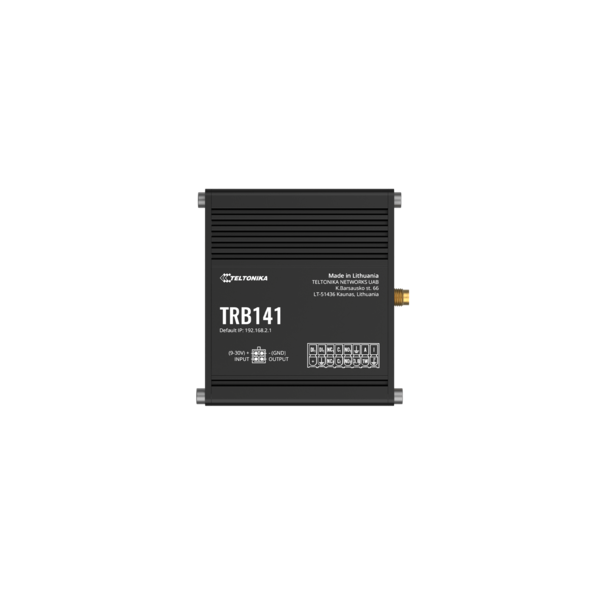

TRB141

Teltonika Networks
SKU: 80363300
INDUSTRIAL RUGGED GPIO LTE GATEWAY, IP30, ARM Cortex-A7 1.2 GHz, 3xDI, 1xAI, 1xUSB, 1xSIM, 9..30 VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Antenna characteristics
Cellular interfaces
4G
Function
Cellular
Extension Slots
SIM Card slots
1, Mini-SIM
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, BGP
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, PPP, PPPoE
Digital Input
Total channels of digital input
3
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
74.5 mm
Depth
25 mm
Height
64.4 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, EAC
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Safety
IEC 62368-1
Dimensions
Net Weight
0.14 kg
Gross Weight
0.5 kg
