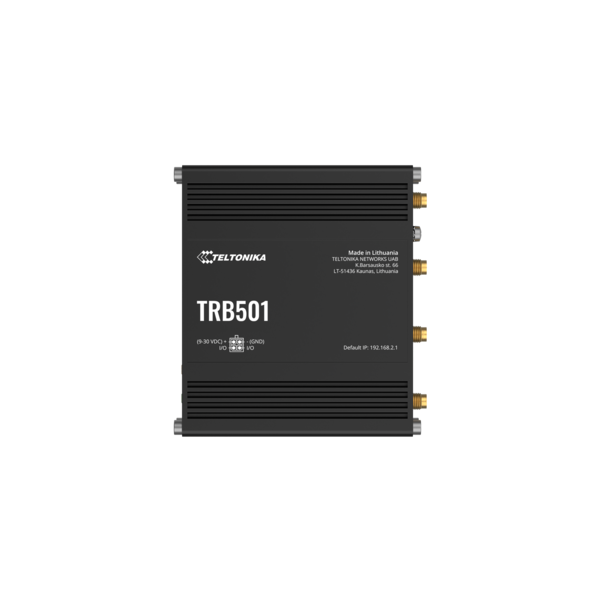

TRB501 eSIM

TRB501 eSIM

Teltonika Networks
SKU: 80365600
INDUSTRIAL 5G GATEWAY, IP30, Qualcomm, 1.5 GHz, ARM Cortex-A7, 1x10/100/1000/2500 Mbps, 2xDI, 2xDO, 1xSIM, 9..30 VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Antenna characteristics
Cellular interfaces
5G
Function
Wi-Fi
Extension Slots
SIM Card slots
1, Mini-SIM
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, BGP
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, PPP, PPPoE
IEEE Standard
ieee_802.3, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
100 mm
Depth
300 mm
Height
93.4 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, WEEE, EAC, CB
EMI
EN 61000-3-2, EN 61000-3-3
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55032, EN 55035
Safety
IEC 62368-1
Vehicle
E-Mark
Dimensions
Net Weight
0.2 kg
Gross Weight
0.7 kg
Ethernet
Total Ethernet
1
2,5 Gbit/s
