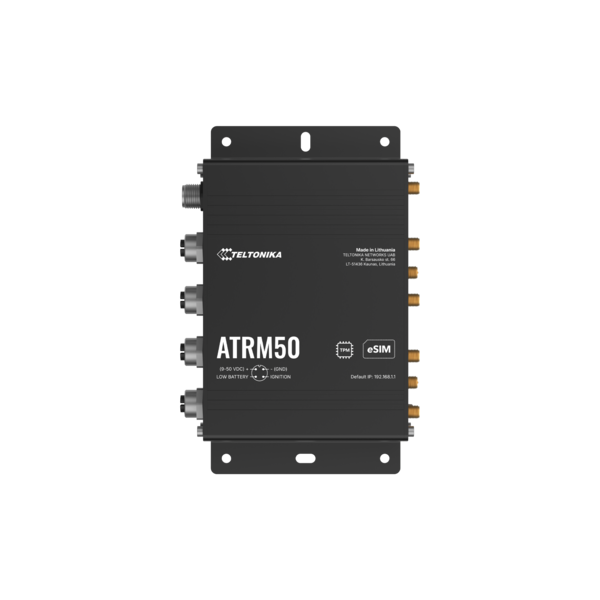

ATRM50 eSIM
Teltonika Networks
SKU: 80350900
5G ROUTER FOR TRANSPORTATION, IP30, Wi-Fi 5, MediaTek, Dual-Core, 880 MHz, MIPS1004Kc, 1x10/100/1000 Mbps WAN M12, 3x10/100/1000 Mbps LAN M12, 1xUSB, 2xSIM, 9..50 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Type 10/100/1000 Mbit/s
M12
Interfaces
USB Total
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Security
WPA2-Enterprise
Antenna characteristics
Cellular interfaces
5G
Extension Slots
SIM Card slots
2, Mini-SIM
Additional Functions
GPS
GPS, GLONASS
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, PPP, PPPoE
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..50 V
Construction
Construction Chassis
Aluminium Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
167 mm
Depth
46.2 mm
Height
112.4 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, WEEE, EAC, CB
EMI
EN 61000-3-2, EN 61000-3-3
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55032, EN 55035
Safety
EN 62368-1 (LVD)
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Type 10/100/1000 Mbit/s
M12
