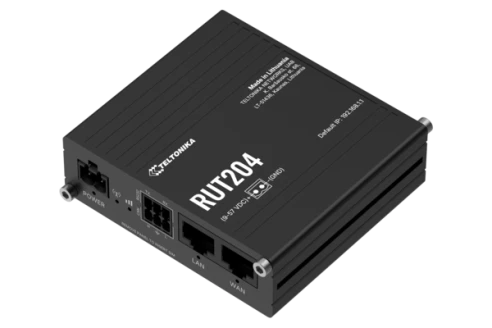

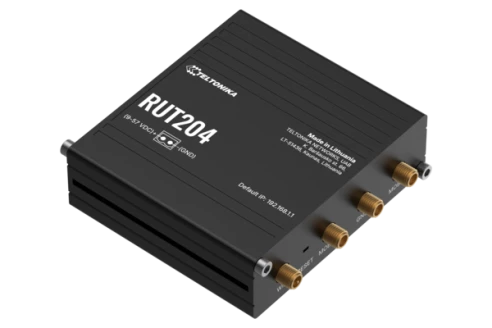

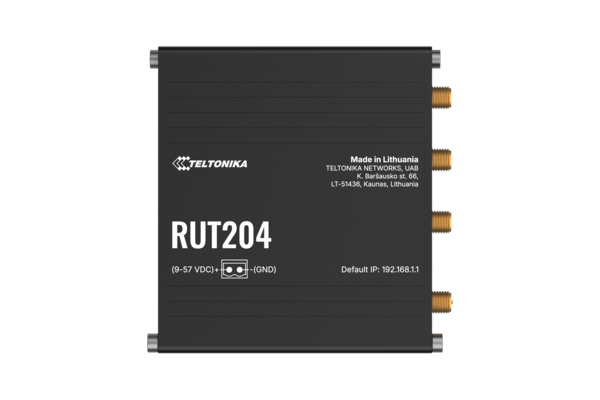

RUT204
Teltonika Networks
SKU: 80350000
CAN BUS LTE ROUTER, IP30, Wi-Fi 4, Mediatek 580 MHz, 1x10/100 Mbps WAN, 1x10/100 Mbps LAN, 1xPoE, 1xCOM, 2xSIM, 9..57 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
PoE 10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Wi-Fi Operation Mode
Access point
Security
WPA2-Enterprise
Antenna characteristics
Cellular interfaces
4G
Function
Wi-Fi
Extension Slots
SIM Card slots
2, Mini-SIM
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, BGP
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, PPP, PPPoE
IEEE Standard
ieee_802.3, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
83 mm
Depth
25 mm
Height
83 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, EAC, CB
Dimensions
Net Weight
0.14 kg
Gross Weight
0.3 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
