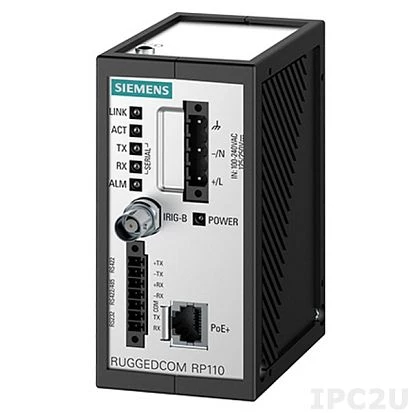

RUGGEDCOM-RP110
Siemens AG
SKU: 56138300
Industrial PoE Injector with Serial Server, 24/48VDC Input Power, -40..85C Operating Temperature
End-of-life product
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
RS-232/422/485
1
System Power Input
Input Voltage DC
10..60 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
56.5 mm
Depth
95.2 mm
Height
117.5 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3
Automotive
NEMA TS2
Safety
UL 60950-1, CSA
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
RS-232/422/485
1
System Power Input
Input Voltage DC
10..60 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
56.5 mm
Depth
95.2 mm
Height
117.5 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3
Automotive
NEMA TS2
Safety
UL 60950-1, CSA
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
RS-232/422/485
1
System Power Input
Input Voltage DC
10..60 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
56.5 mm
Depth
95.2 mm
Height
117.5 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3
Automotive
NEMA TS2
Safety
UL 60950-1, CSA
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
RS-232/422/485
1
System Power Input
Input Voltage DC
10..60 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
56.5 mm
Depth
95.2 mm
Height
117.5 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3
Automotive
NEMA TS2
Safety
UL 60950-1, CSA
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
