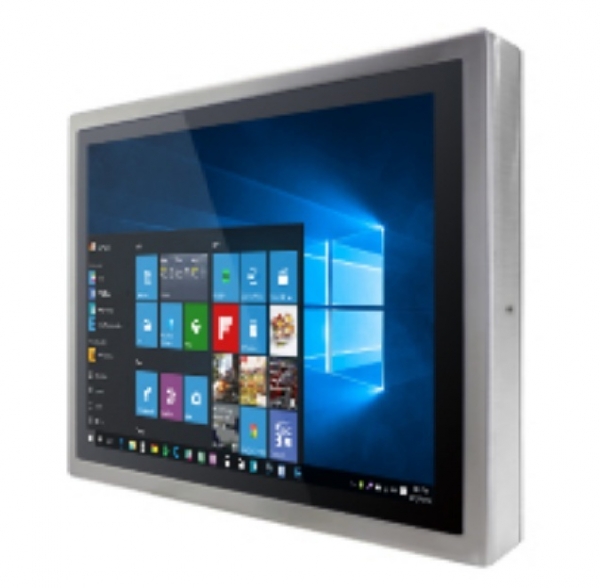

R19IH3S-SPM169
Winmate
SKU: 07904200
19" TFT LCD Industrial Panel PC, IP69, Projective Capasitive Touch Screen 1024x768, Intel Core i5-5200U 2.2GHz, 4GB RAM, 64GB mSATA SSD MLC, 2xUSB 2.0, 1xGbit LAN, 1xRS-232, 12V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-5200U
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
RJ45, 2xUSB, 12V DC Output
System Power Input
Input Voltage DC
12..12 V
Power Consumption
56 W
Power Supply
Type of Power Supply
DC-DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
467.4 mm
Height
392 mm
Depth
56.6 mm
Operating Conditions
Operating Temperature
0..45 °C
Dimensions
Net Weight
9 kg
Gross Weight
11 kg
