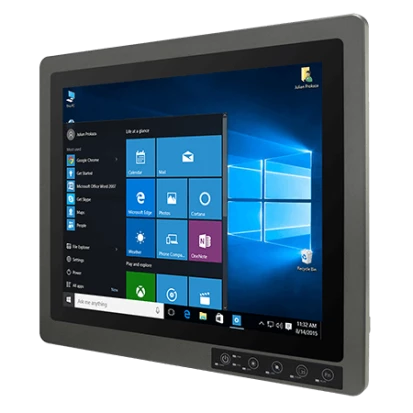

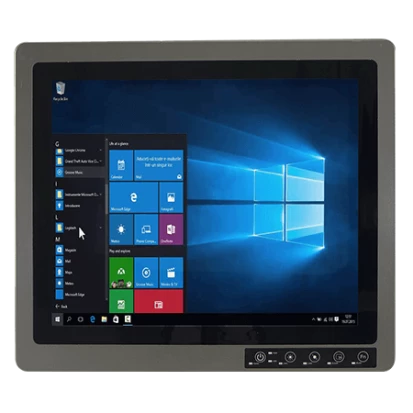

R19IAD3S-67FTP
Winmate
SKU: 11073400
19" Panel PC, 1280x1024, Intel Core i5-1235U, 8GB DDR5,128GB SSD, 1xLAN,1xCOM,9-36V DC-in, Full IP67
End-of-life product
13 057,06 €
archive price
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
RJ45, M12 USB, USB type A, M12 DC-in, M12 COM
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
474 mm
Height
410 mm
Depth
111 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Vibration
MILSTD810G Method 514.6 Procedure I
Shock
MILSTD810G Method 516.6 Procedure I
Dimensions
Net Weight
9.8 kg
Gross Weight
13 kg
